MULTICOMP-PRO MC010888 Vandal Resistant Switch

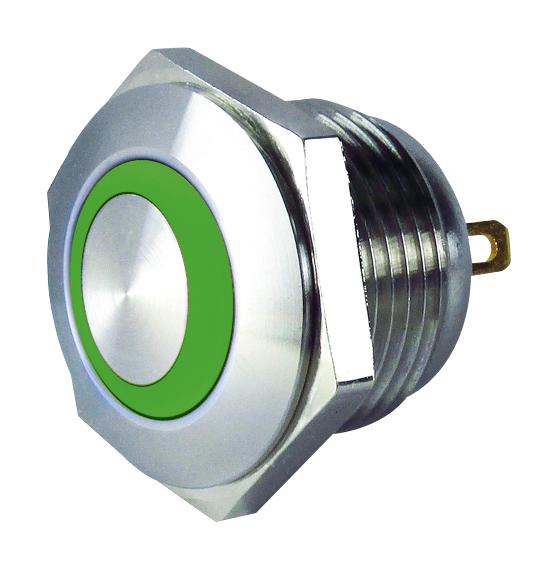

The illuminated vandal resistant switch features a stainless steel finish with a 16mm mounting hole diameter, designed for robust industrial environments. It offers three top types: flush, prominent, and domed, with LED indicators available in green, red, and blue colours. Rated for 48V DC and a current of over 100mA, it includes a solder terminal style, a degree of protection of P67, and withstands vibration and shock resistance. The switch's mechanical life is 1,000,000 operations, with an electrical life of 50,000 cycles, suitable for demanding applications requiring vandal resistance.
MULTICOMP-PRO MC010888 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green, Red, Blue
- Switch Operation: 1NO.
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C (No freezing)
- Operating Temperature: 1-25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Operating limits: 200 m/S², Damage limits: 500 m/S²
- Mechanical Life: Momentary 1,000,000; Maintained 250,000
- Electrical Life: 50,000
- Degree of Protection: P67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the Multicomp Series Vandal Resistant Switch: MC010888
Purchase the vandal resistant illuminated switch online today to enjoy high durability and versatile LED options. Ideal for industrial and outdoor applications, it features stainless steel construction, a 16mm mounting hole, and multiple top styles—flush, prominent, and domed. Rated for 48V DC, with over 100mA current, it offers excellent dielectric strength, vibration, and shock resistance. Its long mechanical and electrical lifespan ensures reliable operation in harsh environments. Order now for quick delivery and secure your industrial safety needs.
Buy Multicomp vandal resistant illuminated switch MC010888 now and experience unmatched reliability and performance for demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC010888?
You can click on the BUY or RFQ button to purchase MC010888 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010888?
You can download the MC010888 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC010888?
MULTICOMP-PRO
