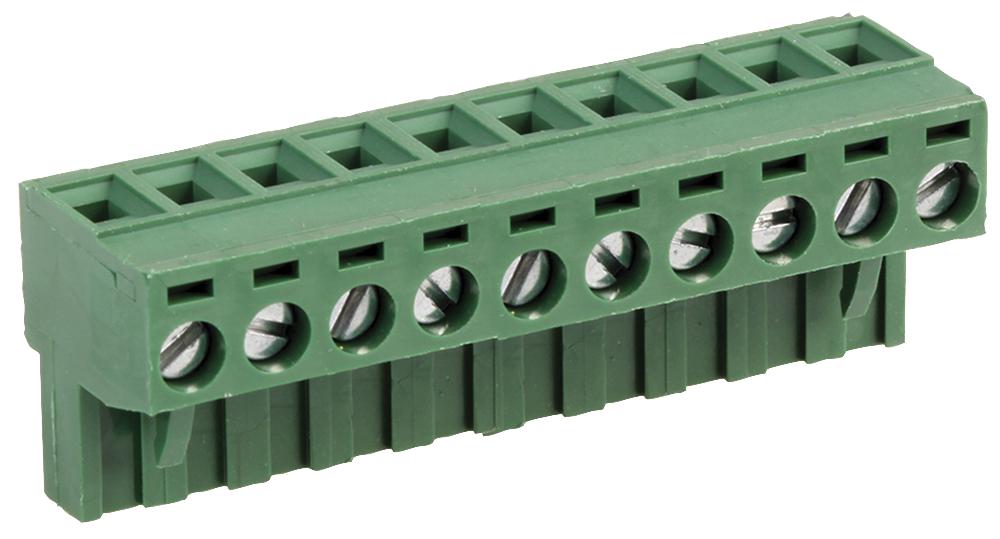

MULTICOMP PRO MC000182 Pluggable Terminal Blocks
The pluggable terminal blocks are 5.08mm pitch connectors suitable for applications requiring reliable wire connection with a current rating of 16A and voltage up to 300V AC. Constructed with polyamide 66 insulating bodies and phosphor bronze contacts, these connecting modules feature cage clamps and steel zinc-plated screws for durability. Available in various configurations from 2 to 12 positions, they are ideal for automation, control systems, and industrial wiring where quick, secure, and reusable connections are essential. Operating temperature ranges from -40°C to +105°C, ensuring versatile use in different environments.
MULTICOMP PRO MC000182 Pluggable Terminal Blocks Specifications:
- Current Rating: 16A
- Voltage Rating: 300V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: > 2,000 MQ at 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Range: 24 AWG to 12 AWG
- Wire Strip Length: 4mm to 5mm
- Screw Torque: 7 Ib-inch
- Pitch: 5.08mm (0.2 inch)
- Insulating Body Material: Polyamide 66
- Contact Material: Phosphor Bronze, Tin plated
- Cage Clamp Material: Brass, Ni plated
- Screw Material: Steel, Zinc+Cr*3
- Pole Count: 2 to 12 ways, depending on model
- Dimensions: Length varies with pole count, approximately 5.08mm pitch
Buy the Multicomp Series Pluggable Terminal Blocks: MC000182
Enhance your electrical installations with our reliable pluggable terminal blocks featuring a 5.08mm pitch, rated for 16A and 300V AC. Crafted from high-quality polyamide 66, these connectors offer excellent durability, thermal resistance, and ease of use. With a wire range of 24 to 12 AWG, they enable quick and secure connections for automation, control panels, and industrial wiring setups. Available in various pole configurations from 2 to 12, these terminal blocks are the perfect choice for ensuring flexible yet robust electrical connections in demanding environments.
Order your Multicomp Series Pluggable Terminal Blocks MC000182 today and enjoy secure, flexible industrial wiring solutions with quick connection options.
