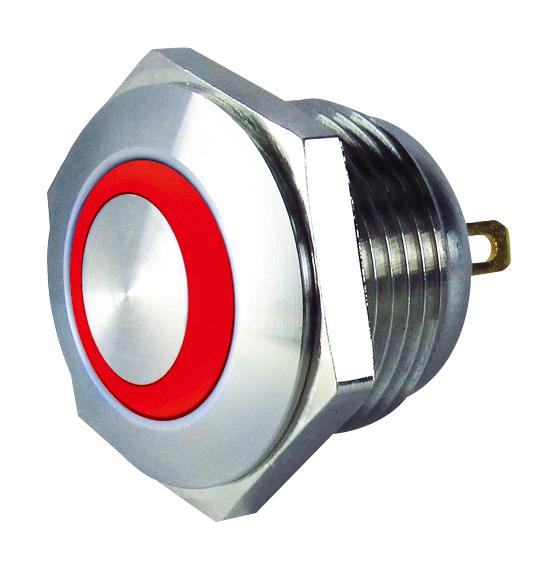

MULTICOMP PRO MC010889 Vandal Resistant Illuminated Switch
The illuminated vandal resistant switch is designed for robust industrial applications, featuring three mounting options: flush, prominent, and domed. It is constructed from stainless steel, ensuring durability and resistance to vandalism. The switch operates at 48V DC with a contact configuration of 1NO and is equipped with LED indicators in green, red, or blue, visible when illuminated. It offers a dielectric strength of 2,000V AC for live parts versus ground, making it suitable for harsh environments. The switch includes solder terminals, a weight of 11g, and a degree of protection IP67, with mechanical and electrical lifespans of 1,000,000 and 50,000 cycles respectively.
MULTICOMP PRO MC010889 Vandal Resistant Illuminated Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green / Red / Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: 2000V AC / min (live to ground), 1000V AC / min (terminals of same poles)
- Contact Resistance: 50mΩ Max. (Initial)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (no condensation)
- Storage Temperature: -30°C to +70°C (no freezing)
- Operating Temperature: 1°C to +50°C (no freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 200m/s² operating, 500m/s² damage limit
- Mechanical Life: 1,000,000 cycles momentary, 250,000 maintained
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the multicomp Series Vandal Resistant Switch: MC010889
Purchase the multicomp vandal resistant illuminated switch MC010889 online today to ensure reliable operation in harsh environments. Featuring stainless steel construction, IP67 protection, and LED indicators in red, green, or blue, this switch is ideal for industrial applications. It offers a rated voltage of 48V DC, a dielectric strength of 2000V AC, and a mechanical lifespan of 1 million cycles. Easy to install with solder terminals, it combines durability, visibility, and safety in one robust design, ensuring long-lasting performance.
Get multicomp vandal resistant illuminated switch MC010889 today—built for robustness with LED indicators and IP67 protection for industrial environments.
