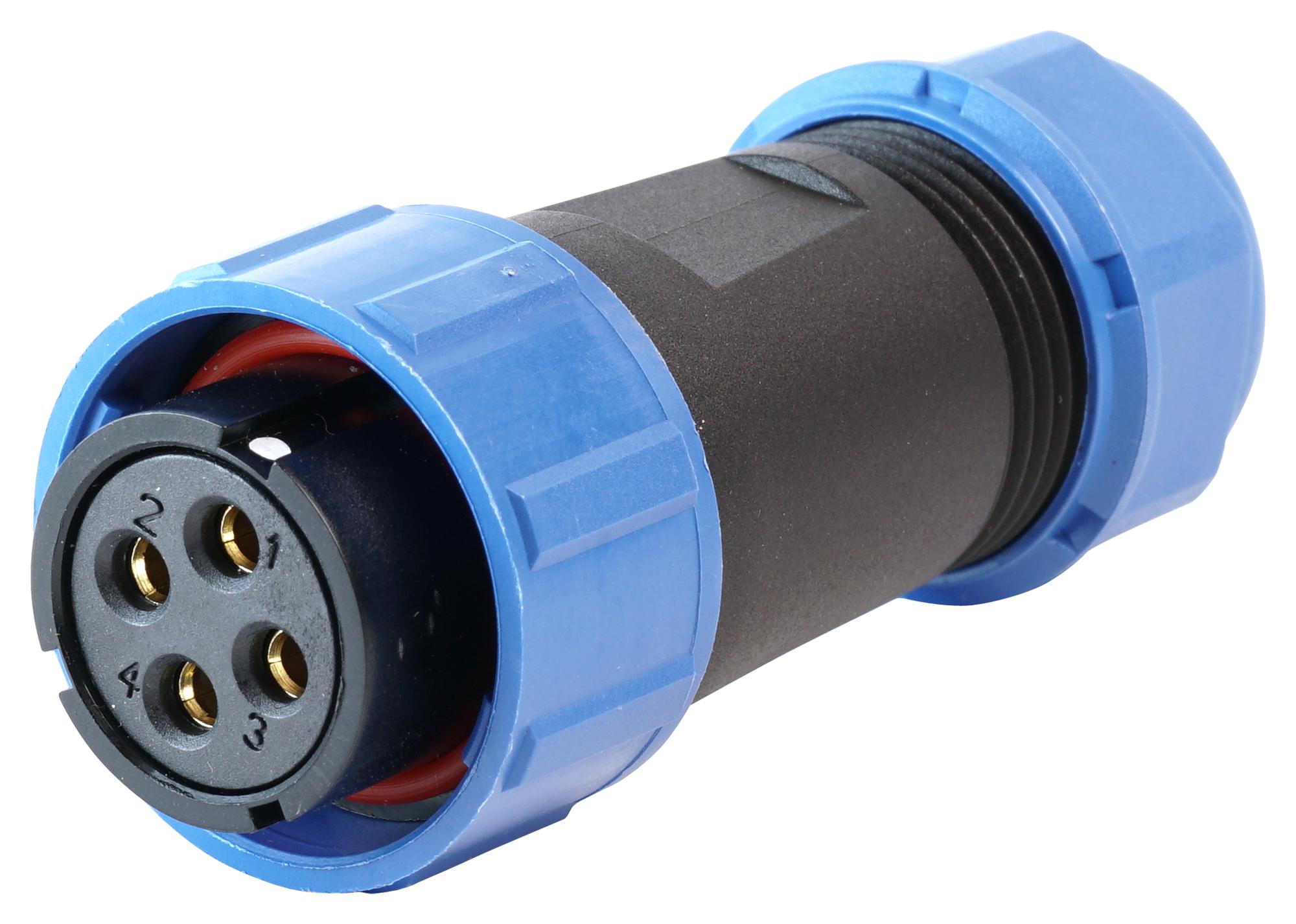

MULTICOMP PRO MP002673 IP67 Connectors
The MP-T21 IP67 series is a durable range of connectors featuring bayonet couplings for quick and secure connection and disconnection. These connectors are available in panel mount, cable mount, and in-line cable mount options, allowing for flexible cable-to-panel or cable-to-cable connections. Designed with weather sealing to IP67 standards, they are suitable for both indoor and outdoor environments. The connectors fit a 21mm cut-out and offer solder and screw termination options. They support 2, 3, 4, 5, 7, 9, and 12 poles, with an IP67-rated cap available. Ideal for automation, process control, medical devices, security, test and measurement, and industrial automation.
MULTICOMP PRO MP002673 IP67 Connectors Specifications:
- Material and Specifications: Shell Material Nylon66, Locking Nut, Back Shell, Compressing Nut, Retaining Nut, V-0 fire resistance, Insert Material PPS max. 260°C, Contact Material Brass with gold plating.
- IP Rating: IP67 with sealing cap, coupling bayonet type, weather-resistant.
- Electrical Specifications: Rated Current 30A, 15A, 5A depending on contact, Rated Voltage up to 500V, Test Voltage 1500V AC 1 min.
- Physical Dimensions: Fits 21mm panel cutout, cable outer diameter up to 12mm, contact diameters from 1mm to 3mm, termination options Solder and Screw.
- Operational Range: Temperature -40°C to +80°C, Insulation Resistance 2000MΩ, Mating Cycle 500, Contact Resistance 1-5mΩ, Support for 2-12 contacts with various configurations.
- Accessories: Dust caps available, sets include plug and receptacle with screw or solder terminations, designed for quick connection in industrial environments.
Buy the Multicomp Series IP67 Connectors: MP002673
Purchase Multicomp IP67 connectors MP002673 online today and ensure reliable, weather-resistant connections for industrial automation, outdoor equipment, and harsh environments. These premium connectors feature quick bayonet coupling, versatile mounting options including panel, cable, and inline mount, and support for multiple contact configurations. Designed with durable nylon66 shells, gold-plated brass contacts, and IP67 sealing, they guarantee long-lasting performance in extreme conditions. Easy to install with solder or screw termination, making them ideal for a wide range of industrial and outdoor applications. Order now for fast delivery and dependable connectivity.
Get Multicomp IP67 connectors MP002673 today—built for durable outdoor applications with quick disconnect bayonet coupling and multiple mounting options.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002673?
You can click on the BUY or RFQ button to purchase MP002673 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002673?
You can download the MP002673 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002673?
MULTICOMP PRO
