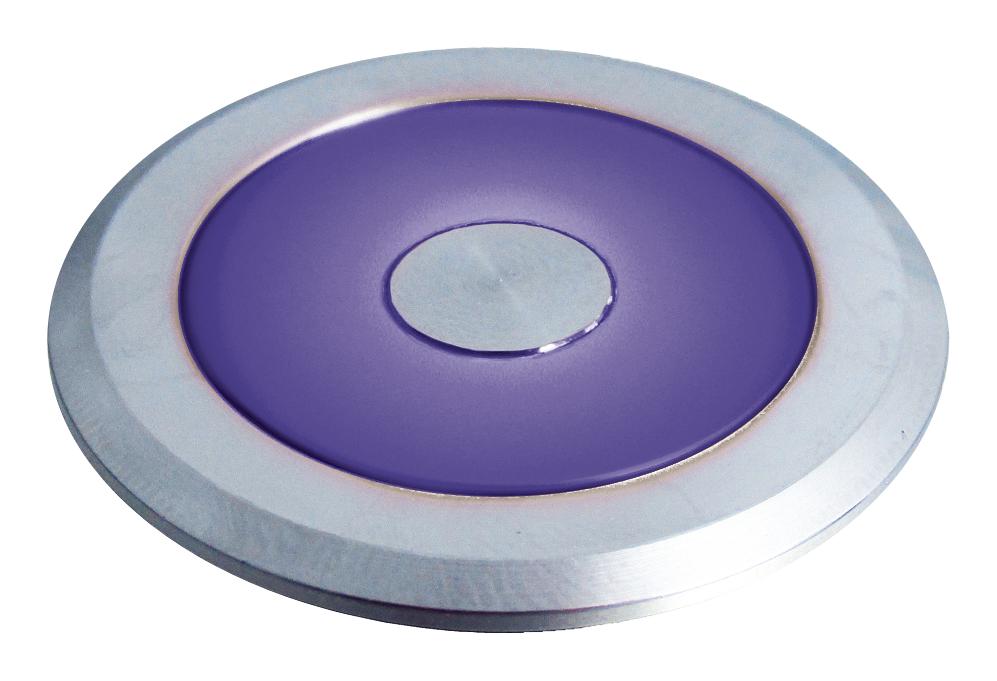

MULTICOMP PRO MC011004 Vandal Resistant Switch
This flush illuminated vandal resistant switch features a metal bezel-ring and silhouette-ring design, rated for 600V and 210A. It includes LED indicators with green, red, or blue illumination, and is constructed from durable aluminium with an IP65 protection rating. Suitable for demanding environments, it supports various configurations such as 1NO, 1NC, and multi-pole options, with a dielectric strength of 2,000V AC between live parts and ground, and 1,000V AC between terminal poles. The switch offers high mechanical and electrical life, vibration and shock resistance, and operates within -30°C to +80°C storage and 1°C to +55°C operational temperatures.
MULTICOMP PRO MC011004 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminium
- Dielectric Strength: 2,000V AC between live part and ground, 1,000V AC between terminals of same poles
- Contact Resistance: 50mΩ Max. (Initial)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: 1°C to +55°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1000 m/s² (Damage limit), 100 m/s² (Operating limit)
- Mechanical Life: Momentary 1,000,000 cycles, Maintained 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Multicomp Series Switch: Flush Illuminated Vandal Resistant Switch MC011004
Enhance your control panel with this durable flush illuminated vandal resistant switch, featuring a robust aluminium finish, IP65 protection, and LED indicators in green, red, or blue. Rated for 600V and 210A, it offers reliable operation in harsh environments. The switch's high dielectric strength and IP65 rating ensure safety and durability, making it ideal for industrial, commercial, or demanding applications. Easy to install with a 22mm mounting hole, it supports various contact configurations for versatile usage. Purchase online today for reliable, long-lasting performance in your control solutions.
Order your Multicomp Series Flush Illuminated Vandal Resistant Switch MC011004 today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC011004?
You can click on the BUY or RFQ button to purchase MC011004 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC011004?
You can download the MC011004 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC011004?
MULTICOMP PRO
