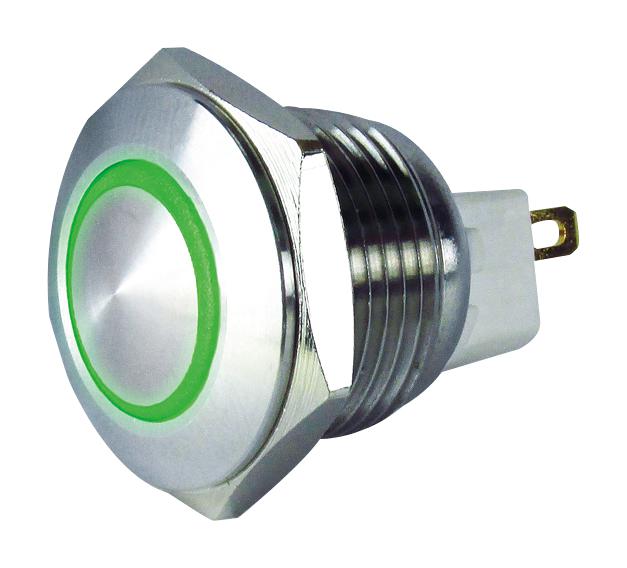

MULTICOMP PRO MC010900 Vandal Resistant Switch
The illuminated vandal resistant switch is designed for harsh indoor and outdoor environments with its UL5OE Type 4X rated protection. It features a stainless steel body, gold-plated contact blocks, and offers both maintained and momentary contact modes. The switch has a rugged, vandal-resistant ring top, and is available in multiple configurations, including flush, prominent, and domed styles. It operates at 48V DC, with a LED indicator in green, red, or blue, suitable for applications requiring high durability, reliability, and easy panel mounting with a 16mm hole.
MULTICOMP PRO MC010900 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green / Red / Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C (No freezing)
- Operating Temperature: 1-25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Damage limits: 500 m/S²; Operating limits: 200 m/S²
- Mechanical Life: Momentary: 1,000,000; Maintained: 250,000
- Electrical Life: 50,000 cycles
- Degree of Protection: P67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the Buy multicomp Illuminated Vandal Resistant Switch Part Number MC010900 Online
Enhance your electrical installations with the durable and reliable vandal resistant illuminated switch from multicomp. Featuring a stainless steel body, gold-plated contacts, and an LED indicator in essential colors, this switch ensures high visibility and longevity. Suitable for indoor and outdoor use with UL5OE Type 4X protection, it offers multiple mounting options including flush, prominent, and domed styles. With its robust design, it withstands vibrations, shocks, and extreme temperatures, making it ideal for industrial control panels, security systems, and rugged environments.
Order your multicomp SeriesMC010900 vandal resistant illuminated switch today and equip your projects with durable, high-performance switches designed for harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010900?
You can click on the BUY or RFQ button to purchase MC010900 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010900?
You can download the MC010900 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010900?
MULTICOMP PRO
