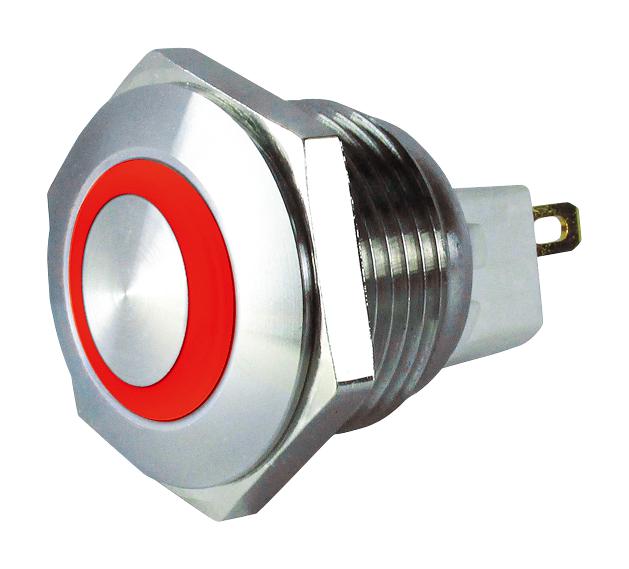

MULTICOMP PRO MC010904 Illuminated Vandal Resistant Switch
The illuminated vandal resistant switch is designed for reliable operation in harsh environments. It features a stainless steel finish, various top mount options including flush, prominent, and domed, and is UL5OE Type 4X rated for indoor and outdoor use. The switch operates with a contact configuration of 1NO, has a rated voltage of 48V DC, and a LED voltage of 12V with available colors in green, red, and blue. It supports a mechanical life of 1,000,000 cycles and an electrical life of 50,000 cycles, with protection degree IP67. Suitable for panel thicknesses of 0.5 to 3mm, it includes solder terminals, a gasket, and a hex nut for secure mounting.
MULTICOMP PRO MC010904 Illuminated Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: >100mA
- LED Voltage: 12V
- LED Colour: Green / Red / Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; between terminals of same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C (No freezing)
- Operating Temperature: 1°C to 50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Damage limits: 500 m/S², Operating limits: 200 m/S²
- Mechanical Life: Momentary: 1,000,000 cycles; Maintained: 250,000 cycles
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the Buy multicomp Illuminated Vandal Resistant Switch Part Number MC010904 Online
Purchase the multicomp illuminated vandal resistant switch online for secure and durable operation in harsh conditions. Featuring stainless steel construction, multiple top mount options including flush, prominent, and domed, and LED indicators in red, green, or blue, this switch is ideal for both indoor and outdoor applications. With a robust IP67 protection rating, it supports up to 1,000,000 mechanical cycles and 50,000 electrical cycles. Easy to install with solder terminals, gaskets, and nuts included, ensuring reliable performance across varied environmental conditions.
Buy multicomp MC010904 now and experience unmatched reliability, corrosion resistance, and clear LED indication for demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010904?
You can click on the BUY or RFQ button to purchase MC010904 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010904?
You can download the MC010904 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010904?
MULTICOMP PRO
