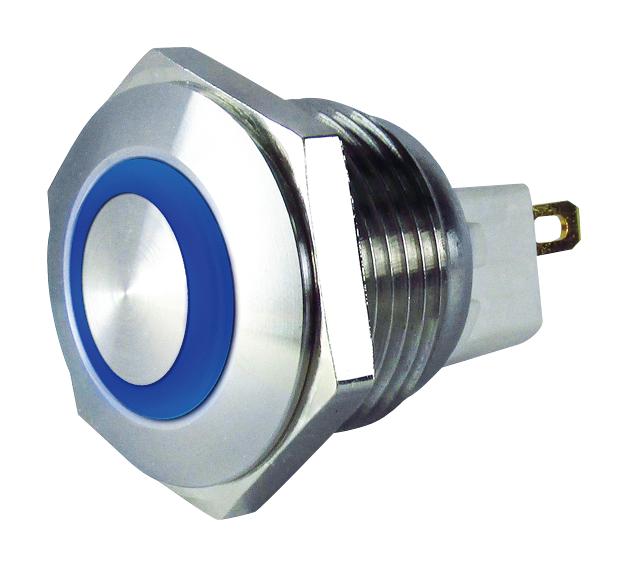

MULTICOMP PRO MC010905 Vandal Resistant Switch
The illuminated vandal resistant switch combines durability and visibility, designed for indoor and outdoor applications. Available in various configurations including flush, prominent, and domed tops, with LED indicators in green, red, and blue colors. Made with stainless steel for enhanced longevity, it features gold-plated contacts, a switch operation of 1NO, and a rugged IP67 protection level. Suitable for demanding environments with high humidity, temperature ranges from -30°C to +70°C, vibration resistance, shock tolerance, and a long mechanical and electrical lifespan. Ideal for industrial control panels, security systems, and outdoor equipment requiring vandal-proof, illuminated switching solutions.
MULTICOMP PRO MC010905 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green / Red / Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: 2000V AC between live part and ground, 1000V AC between terminals
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH
- Storage Temperature: -30°C to +70°C
- Operating Temperature: 1°C to +50°C
- Vibration Resistance: 5 to 55Hz, 0.5mm amplitude
- Shock Resistance: 200 m/s² operating, 500 m/s² damage limit
- Mechanical Life: 1,000,000 momentary / 250,000 maintained
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the Multicomp Series Vandal Resistant Switch: MC010905
Experience durability and visibility with this vandal resistant illuminated switch, perfect for outdoor and industrial applications. Featuring stainless steel construction, gold-plated contacts, and multiple LED color options, it offers IP67 protection, making it ideal for harsh environments. Available in various configurations such as flush, prominent, and domed tops, with LED indicators in green, red, and blue. Its high durability, long lifespan, and robust design ensure dependable operation in demanding conditions, making it the choice for secure, illuminated switching solutions.
Order your Multicomp Series vandal resistant illuminated switch MC010905 today and ensure reliable, vandal-proof performance for your industrial or outdoor projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010905?
You can click on the BUY or RFQ button to purchase MC010905 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010905?
You can download the MC010905 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010905?
MULTICOMP PRO
