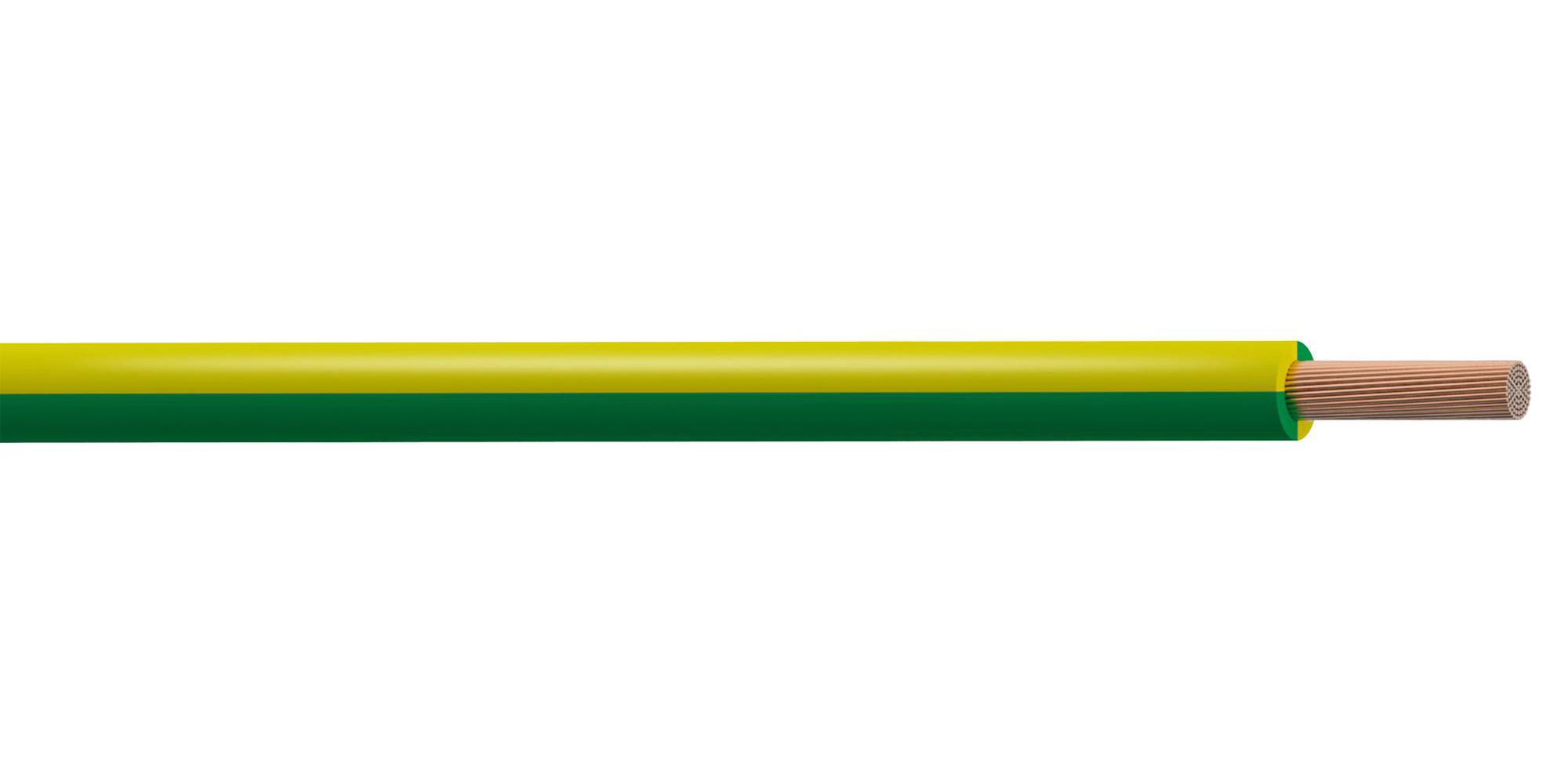

MULTICOMP PRO PP001241 Flexible Control Wire
The PP001241 is a 100-meter length of tri-rated flexible equipment wire featuring a class 5 flexible copper conductor compliant with BS EN 60228 (formerly BS 6360) standards. It has a PVC Type TI3 insulation conforming to BS EN 50363 and is designed for high-temperature and flame-retardant applications. Suitable for switch control, relay, and instrumentation panels of power switchgear, it can also be used as internal connectors in rectifier equipment and controllers. It meets standards including BS 6231 Type CK, BS EN 50525-2-31, BS EN/IEC 60332, CSA C22.2 No. 210, UL Subj 758, with a voltage rating of 450/750V, and a max operating temperature of 105°C, ensuring reliable electrical performance.
MULTICOMP PRO PP001241 Flexible Control Wire Specifications:
- Conductor: Class 5 flexible copper conductor
- Insulation: PVC Type TI3 conforming to BS EN 50363
- Standards: BS EN 50525-2-31, BS 6231 Type CK, UL Subj 758, CSA C22.2 No. 210, BS EN/IEC 60332
- Voltage Rating: 600/1000V (UL, CSA), 300/500V (BS EN 50525-2-31)
- Temperature Rating: +105°C (UL, CSA), +90°C (BS 6231), minimum -15°C
- Maximum conductor resistance: 13.3 ohms/km at 20°C
- Sheath Colour: Multiple options including Black, Blue, Brown, Green/Yellow, etc.
- Reel Length: 100 meters
- Minimum Bending Radius: 6 x overall diameter
- Application: Used in control, relay, instrumentation panels, internal connectors
- RoHS Compliant: Yes
Buy the Multicomp Series Control Wire: PP001241
Purchase the flexible control wire PP001241 online today. Ideal for high-temperature, flame-retardant applications inside control panels, relays, and power switchgear. This RoHS-compliant wire features a flexible copper conductor with PVC Type TI3 insulation, meeting global standards including BS EN 50525-2-31, BS 6231, and UL requirements. Available in a 100-meter reel with multiple colour options, ensuring reliable electrical performance and ease of installation for industrial wiring needs. Order now for fast delivery and enhanced connectivity in your electrical projects.
Get Multicomp Series control wire PP001241 today—built for high-temperature applications and exceptional durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001241?
You can click on the BUY or RFQ button to purchase PP001241 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001241?
You can download the PP001241 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001241?
MULTICOMP PRO
