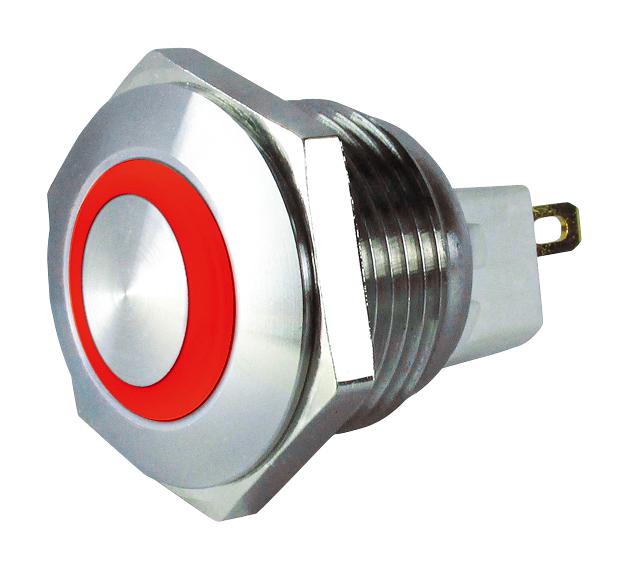

MULTICOMP PRO MC010907 Vandal Resistant Switch
The illuminated vandal resistant switch by multicomp features an IP67 protection rating, stainless steel material, and an optional LED in green, red, or blue. Designed for indoor and outdoor use, it provides reliable performance with a mechanical life of 1,000,000 cycles. Suitable for demanding environments, it supports a 48V DC rated voltage, a contact configuration of 1NO, and a current of over 100mA. Available in flush, prominent, and domed top styles with various LED color options, the switch is perfect for industrial and control panel applications, ensuring durability and visibility in harsh conditions.
MULTICOMP PRO MC010907 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green, Red, Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C (No freezing)
- Operating Temperature: 1°C to 50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 200 m/s² operating, 500 m/s² damage
- Mechanical Life: 1,000,000 momentary, 250,000 maintained
- Electrical Life: 50,000
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the Buy multicomp Illuminated Vandal Resistant Switch Part Number MC010907 Online
Discover the high-quality vandal resistant illuminated switch from multicomp, engineered for durability and visibility in demanding environments. With IP67 protection, stainless steel construction, and optional LED illumination in multiple colors, this switch offers exceptional reliability for industrial and outdoor applications. Suitable for panel mounting with a 16mm hole diameter, it features a long mechanical life of 1,000,000 cycles, making it ideal for control panels, security systems, and harsh environment equipment. Buy online today for fast, secure delivery and exceptional performance.
Order your multicomp SeriesMC010907 vandal resistant illuminated switch today and ensure reliable, durable operation in harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010907?
You can click on the BUY or RFQ button to purchase MC010907 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010907?
You can download the MC010907 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010907?
MULTICOMP PRO
