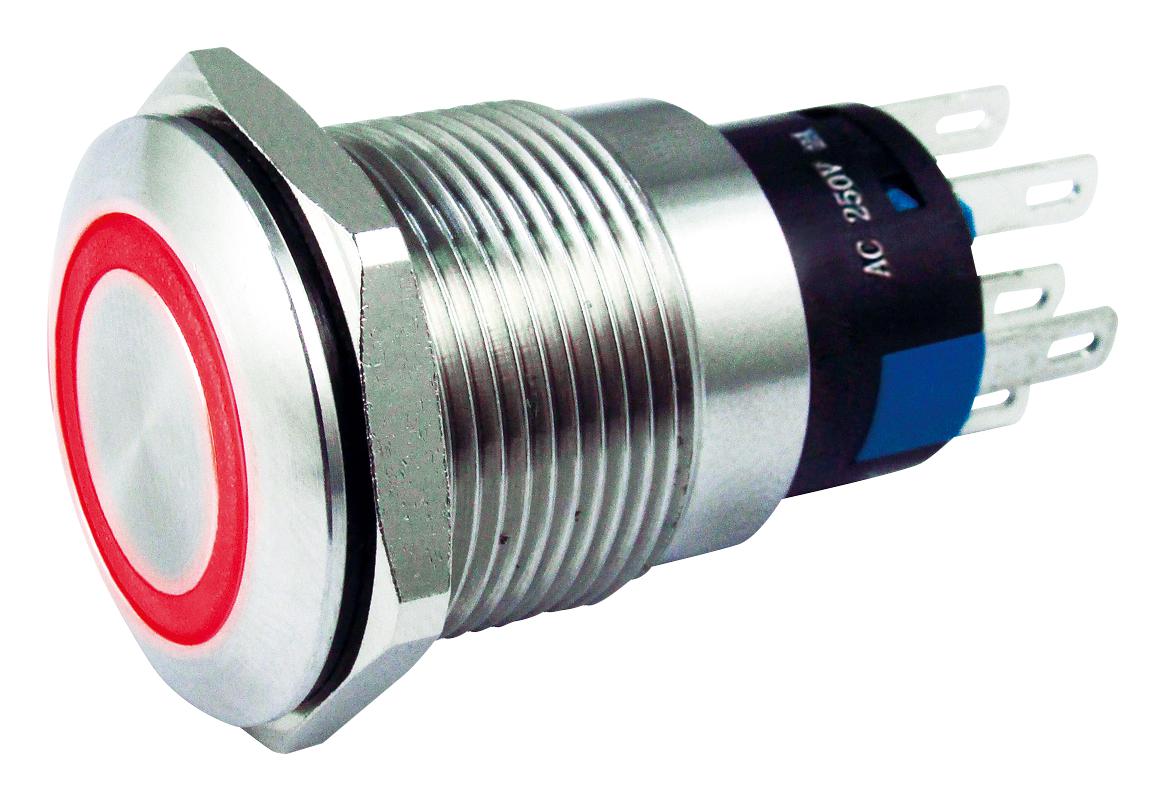

MULTICOMP PRO MC010910 Vandal Resistant Switch
This switch features an illuminated, vandal-resistant design suitable for various industrial and security applications. It offers both flush and domed mounting options, with LED indicators available in red, green, and blue. Rated for 250V and 5A, it includes contact configurations such as 1NO + 1NC and 2NO + 2NC, with robust stainless steel material for durability. It withstands environmental conditions from -25°C to +80°C, offers high dielectric strength, and has a mechanical life of 250,000 cycles. Its IP67 rating ensures excellent protection against dust and water ingress, ideal for demanding environments.
MULTICOMP PRO MC010910 Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colour: Red / Green / Blue
- Switch Operation: Maintained / Momentary
- Contact Configuration: 1NO + 1NC / 2NO + 2NC
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of same poles: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MO Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: -25°C to +50°C
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Operating limits 200 m/S²
- Mechanical Life: 250,000 cycles
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 122g
Buy the Buy multicomp vandal resistant switch Part Number MC010910 Online
Purchase the high-quality vandal resistant illuminated switch online today to enhance your industrial or security systems. With robust stainless steel construction, IP67 protection, and LED indicators in multiple colours, this switch ensures dependable operation in harsh environments. Its rated voltage of 250V and current of 5A support critical applications, featuring both maintained and momentary contact configurations. Easy to install with solder terminals, reliable dielectric strength, and a long mechanical lifespan, it’s your ideal switch for demanding industrial projects and secure installations.
Order your multicomp vandal resistant switch MC010910 today and ensure reliable performance in demanding environments with durable, illuminated design.
