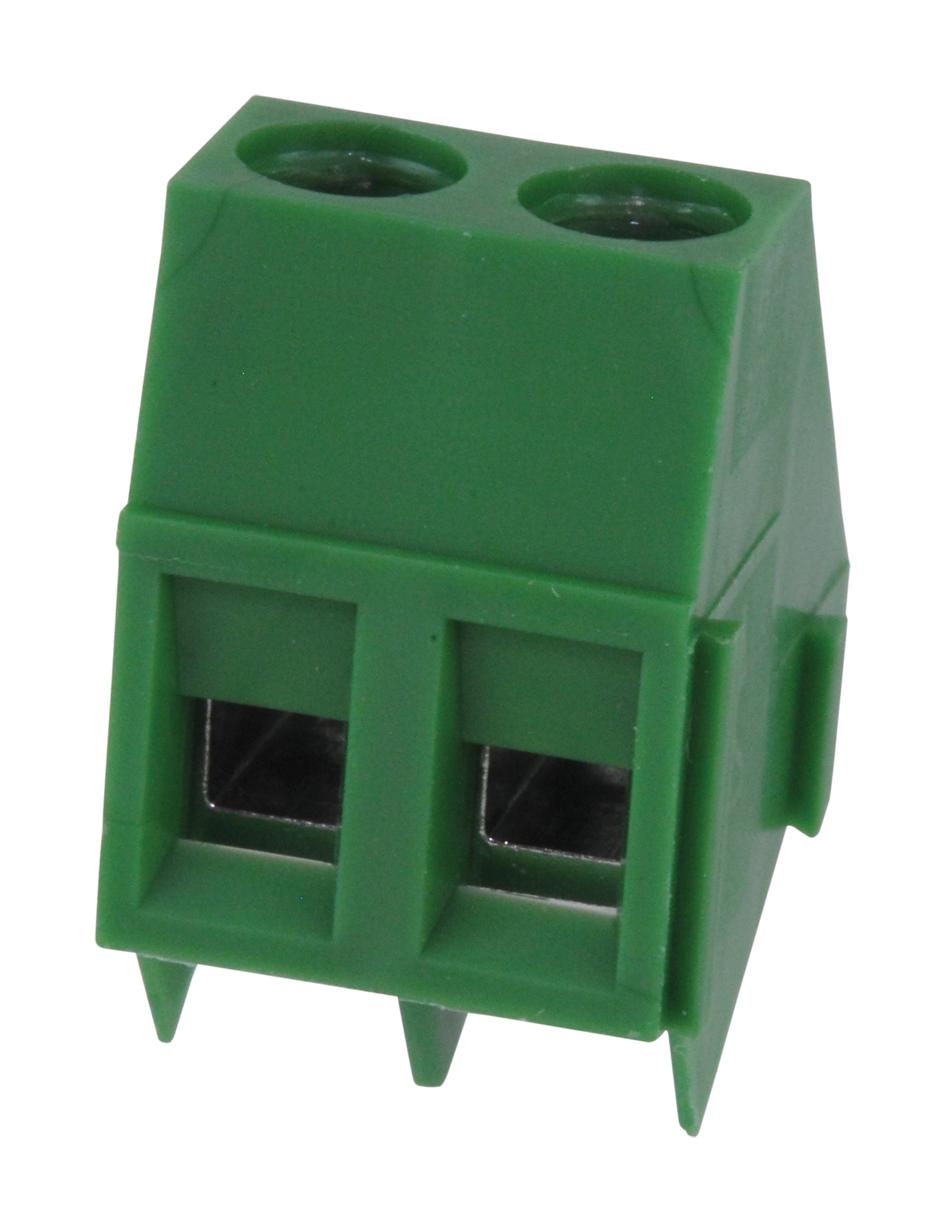

MULTICOMP PRO MC24371 Wire-to-Board Terminal Block
The MC24371 is a two-position wire-to-board terminal block designed for reliable electrical connections with a rated current of 16A. It features a 5.08mm pitch spacing, a polyamide 66 housing with UL94V-0 flammability rating, and brass contacts that are tin-plated for durability. The terminal has a through-hole mounting with a 1.5mm PCB hole diameter, and uses a nickel-plated brass cage clamp alongside an M2.6 nickel-plated steel screw for secure fastening. Operating from -40°C to 105°C, it is ideal for industrial and automation equipment requiring robust, high-quality terminal connections.
MULTICOMP PRO MC24371 Wire-to-Board Terminal Block Specifications:
- Rated Voltage: AC 300V
- Rated Current: 16 Amperes
- Wire Size: 2BAWG to 12AWG (0.2 to 2.5mm²)
- Pitch Spacing: 5.08mm
- Housing Material: Polyamide 66 (UL94V-0)
- Cage Clamp: Brass, Ni Plated
- Terminal: Brass, Tin Plated
- Screw Size: M2.6, Steel, Ni Plated
- Operating Temperature: -40°C to +105°C
- PCB Hole Diameter: 1.5mm
- Dimensions: Millimetres (Inches)
Buy the Eurostyle Series Terminal Block: MC24371
Purchase the Eurostyle Wire-to-Board Terminal Block MC24371 online today and enjoy fast delivery and competitive pricing. This dual-position connector offers reliable electrical connectivity with a 5.08mm pitch, rated for 16A current, suitable for industrial, automation, and control systems. Its UL94V-0 rated polyamide housing, tin-plated brass contacts, and robust screw connection ensure safety and longevity in demanding environments. Ideal for engineers and technicians seeking quality, durability, and ease of installation, this terminal block supports wiring from 2 to 12 AWG and operates efficiently within a temperature range of -40°C to 105°C, ensuring dependable performance across various applications.
Buy Eurostyle MC24371 now and ensure reliable, high-quality connections for your industrial applications with ease and durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC24371?
You can click on the BUY or RFQ button to purchase MC24371 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC24371?
You can download the MC24371 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC24371?
MULTICOMP PRO
