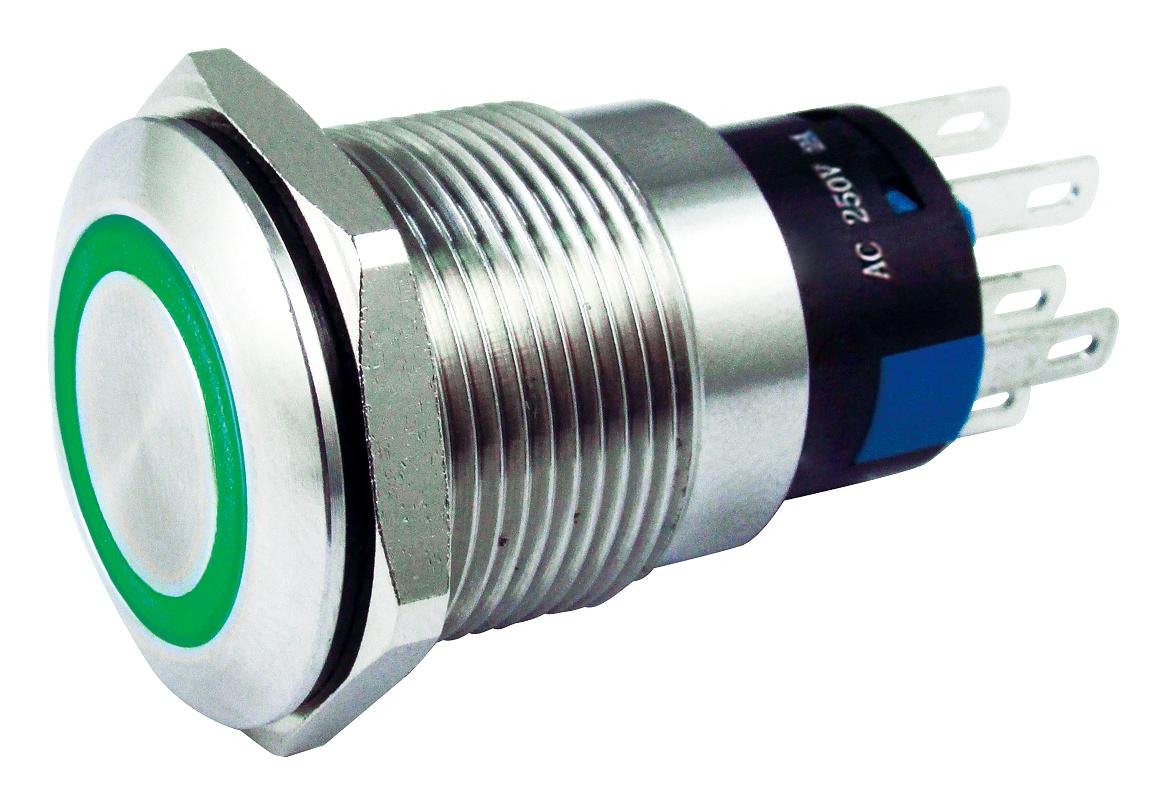

MULTICOMP PRO MC010912 Illuminated Vandal-Resistant Switch
The illuminated vandal-resistant switch series features both flush and domed designs, suitable for industrial and security applications. These switches support multiple contact configurations, including momentary and maintained operation, with LED illumination in red, green, and blue. Rated for 250V and 5A, they offer robust stainless steel materials, high dielectric strength, and IP67 protection. Suitable for environments requiring durability against vandalism, vibration, and shock, these switches have long mechanical and electrical life spans, making them ideal for control panels, maintenance, and security systems in harsh conditions.
MULTICOMP PRO MC010912 Illuminated Vandal-Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colours: Red, Green, Blue
- Switch Operation: 1NO + 1NC / 2NO + 2NC or 1NO + 1NC (momentary/maintained)
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial); 100MO Min. (500V DC)
- Insulation Resistance: 45 to 85% RH (No condensation); -30°C to +80°C (Operating), -25°C to +50°C (Storage)
- Vibration Resistance: 5 to 55Hz, Amplitude 0.5mm
- Shock Resistance: Operating limits 200 m/S2; Damage limits 500 m/S2
- Mechanical Life: 1,000,000 cycles (momentary); 250,000 (maintained)
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder
- Weight: 122g
Buy the ITluminated Vandal Resistant Switch – Reliable Control for Industrial Applications
Order the illuminated vandal-resistant switch online today and enjoy rapid delivery and competitive prices. Designed with durable stainless steel and IP67 protection, this switch withstands tough environments. With multi-contact configurations, LED illumination in various colors, and long mechanical lifespan, it ensures reliable operation in industrial and security applications. Perfect for control panels, security systems, and harsh conditions, this switch combines robustness with performance. Make your purchase now to enhance your control solutions with high-quality, vandal-resistant switches that deliver consistent performance and dependable operation.
Buy ITluminated Vandal Resistant Switch now and experience unmatched durability, high reliability, and vibrant LED illumination for your control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010912?
You can click on the BUY or RFQ button to purchase MC010912 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010912?
You can download the MC010912 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010912?
MULTICOMP PRO
