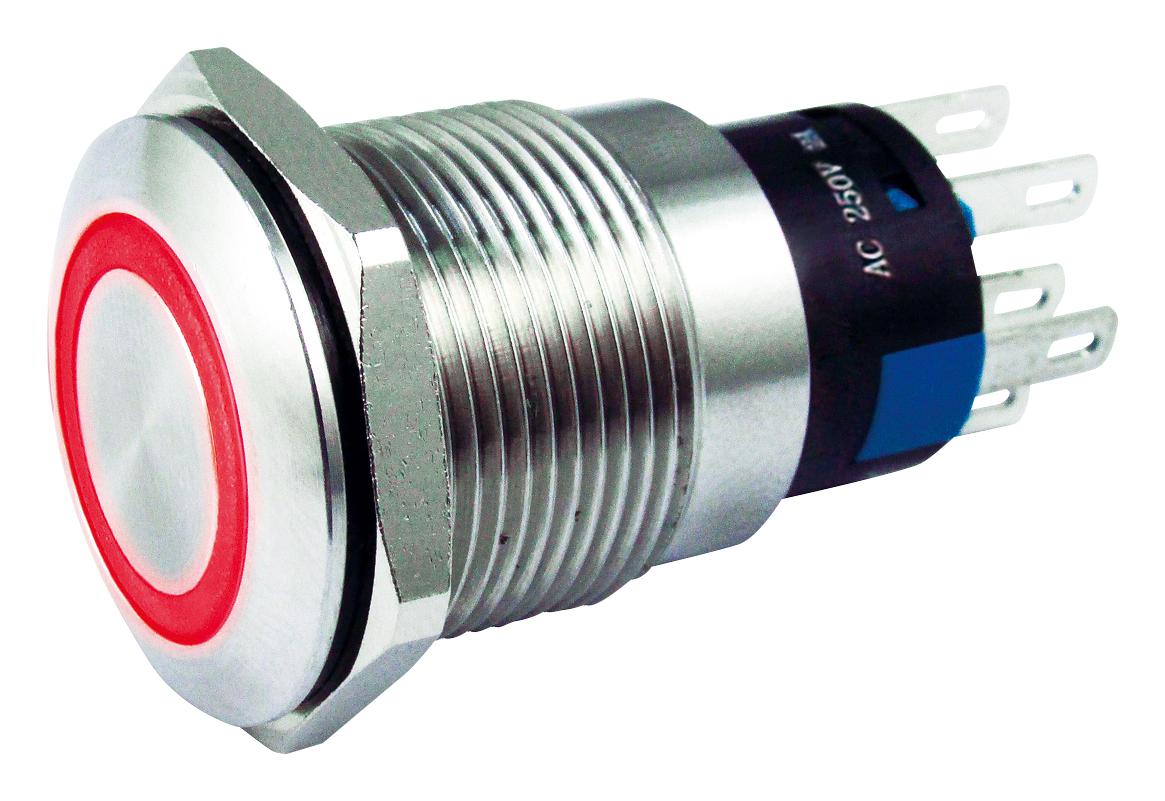

MULTICOMP PRO MC010913 Vandal resistant switch
This vandal resistant switch features a durable stainless steel construction with illumination options, including red, green, and blue LED lighting. Designed for demanding environments, it offers momentary and maintained operation with contact configurations of 1NO + 1NC, 2NO + 2NC, or 4NO + 1NC, ensuring reliable performance. With an IP67 rating, it is resistant to dust and water, suitable for industrial applications. Rated at 250V and 5A, it includes solder terminals, operates from -25°C to +50°C, and withstands vibrations up to 5-55Hz for long-lasting use in tough conditions.
MULTICOMP PRO MC010913 Vandal resistant switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colour: Red, Green, Blue
- Switch Operation: Momentary, Maintained
- Contact Configuration: 1NO + 1NC, 2NO + 2NC, 4NO + 1NC
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min, Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max (Initial value)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Operating limits 200m/S²
- Mechanical Life: 1,000,000 cycles
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 122g
Buy the Buy Multicomp Vandal Resistant Switch Part Number MC010913 Online
Purchase the durable vandal resistant switch from Multicomp online today to ensure your industrial or outdoor project benefits from reliable performance, IP67 protection, and versatile contact configurations. Its stainless steel construction, LED illumination options, and broad temperature range make it perfect for demanding environments. With easy solder terminal connectivity, it guarantees long-lasting operation with a high mechanical and electrical life expectancy. Order now and give your projects the dependable switching component they deserve.
Order your Multicomp SeriesMC010913 vandal resistant switch today and enhance your project with reliable, durable, and water-resistant switching solutions.
