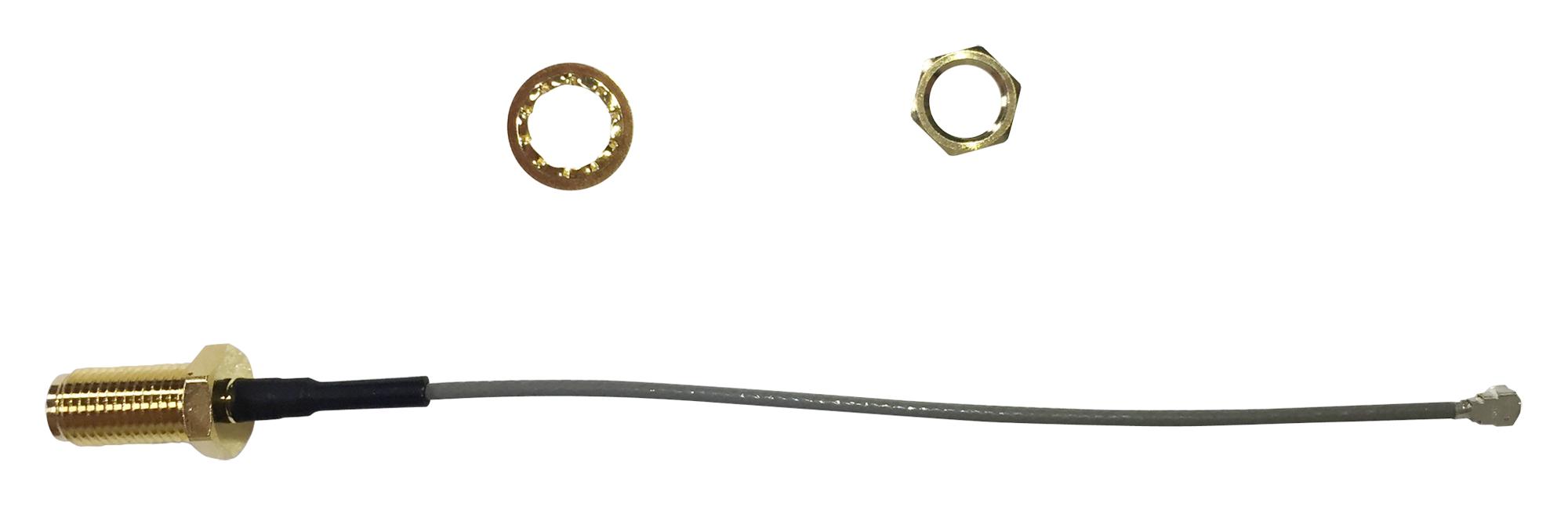

MULTICOMP PRO MC001037 RF coaxial cable assembly
The MC001037 is a 200mm RF coaxial cable assembly featuring a SMA bulkhead jack on one end and a U.FL 90-degree plug on the other. It uses a 1.32mm double-screened low-loss micro coaxial cable designed to reduce PCB noise pickup, making it ideal for outdoor RF communication applications. The cable has an impedance of 50 Ohms, a frequency range from DC to 3 GHz, and a maximum working voltage of 60Vrms. It withstands up to 200Vrms dielectric voltage, with an insulator resistance of at least 500MΩ, and offers a maximum VSWR of 1.4:1 and insertion loss up to -1.3dB. The sheath is black, and the operating temperature range is from -20°C to +70°C.
MULTICOMP PRO MC001037 RF coaxial cable assembly Specifications:
- Impedance: 50 Ohms
- Frequency Range: DC to 3.0GHz
- Working Voltage: 60Vrms Max.
- Dielectric Withstanding Voltage: 200Vrms Max.
- Insulator Resistance: 500MΩ Min.
- VSWR: Insertion Loss 1.4:1Max at DC-3.0GHz
- Insertion Loss: Max -1.3dB
- Cable Diameter: 1.32mm
- Connector Type: SMA bulkhead jack and U.FL connector
- Conductor Material: Not specified
- Outer Sheath Colour: Black
- Temperature Range: -20°C to +70°C
Buy the Buy MultiComp RF Coaxial Cable Part Number MC001037 Online
Order the MultiComp RF coaxial cable assembly MC001037 online to ensure high-quality signal integrity for your RF communication projects. This 200mm cable features a durable black sheath, 50 Ohm impedance, and a frequency range from DC to 3 GHz, making it ideal for outdoor and industrial applications. With a maximum working voltage of 60Vrms and dielectric withstand voltage of 200Vrms, it provides excellent durability and performance. Its double-screened design minimizes noise pickup, ensuring reliable data transfer and enhanced signal clarity for professional-grade wireless systems.
Get MultiComp MC001037 today—designed for reliable RF data transmission with high frequency response and robust construction.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001037?
You can click on the BUY or RFQ button to purchase MC001037 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001037?
You can download the MC001037 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001037?
MULTICOMP PRO
