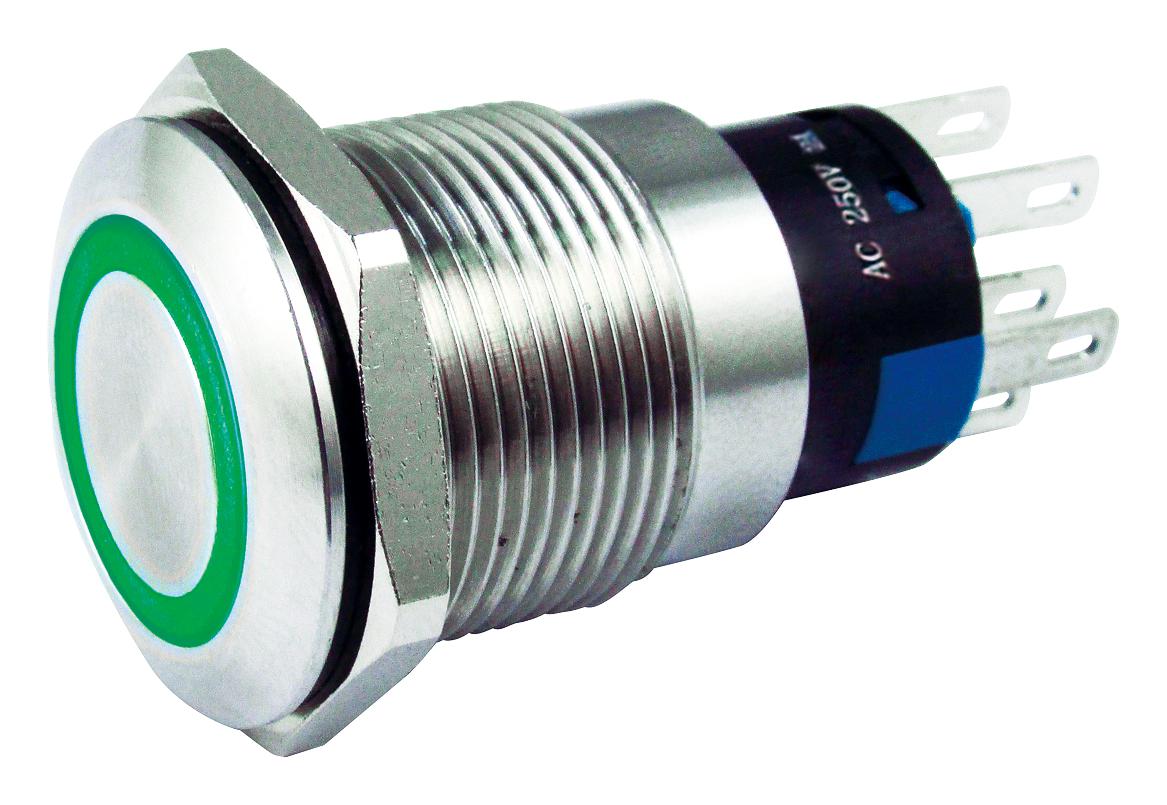

MULTICOMP PRO MC010915 Illuminated Vandal Switch
This illuminated vandal-resistant switch features waterproof IP67 protection, multiple contact configurations, and LED illumination in various colors. Designed for industrial environments, it offers high dielectric strength, vibration and shock resistance, and long mechanical and electrical life. The switch includes options for flush and domed mounting with both maintained and momentary operation types. Made of stainless steel, it guarantees durability, corrosion resistance, and reliable performance in harsh conditions. Suitable for control panels, security systems, and industrial machinery requiring high durability and visibility.
MULTICOMP PRO MC010915 Illuminated Vandal Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colour: Red, Green, Blue
- Switch Operation: Maintained, Momentary
- Contact Configuration: 1NO + 1NC, 2NO + 2NC
- Material: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of same poles: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MO Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: Operating limits: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Damage limits: 500 m/s²; Operating limits: 200 m/s²
- Mechanical Life: Momentary: 1,000,000; Maintained: 250,000
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 122g
Buy the Multicomp Pro MC010915 – Reliable Illuminated Vandal Resistant Switch for Industrial Applications
Purchase the Multicomp Pro illuminated vandal-resistant switch online today for reliable, high durability operation in industrial and control systems. With IP67 waterproof protection, stainless steel construction, and multiple LED color options, this switch is ideal for harsh environments. It offers excellent dielectric strength, shock, and vibration resistance, ensuring long-lasting performance. Perfect for security and industrial control panels, this switch provides easy installation with solder terminals, supporting both maintained and momentary switch actions for versatile applications.
Get Multicomp Pro MC010915 today—built for durability and high visibility in demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010915?
You can click on the BUY or RFQ button to purchase MC010915 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010915?
You can download the MC010915 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010915?
MULTICOMP PRO
