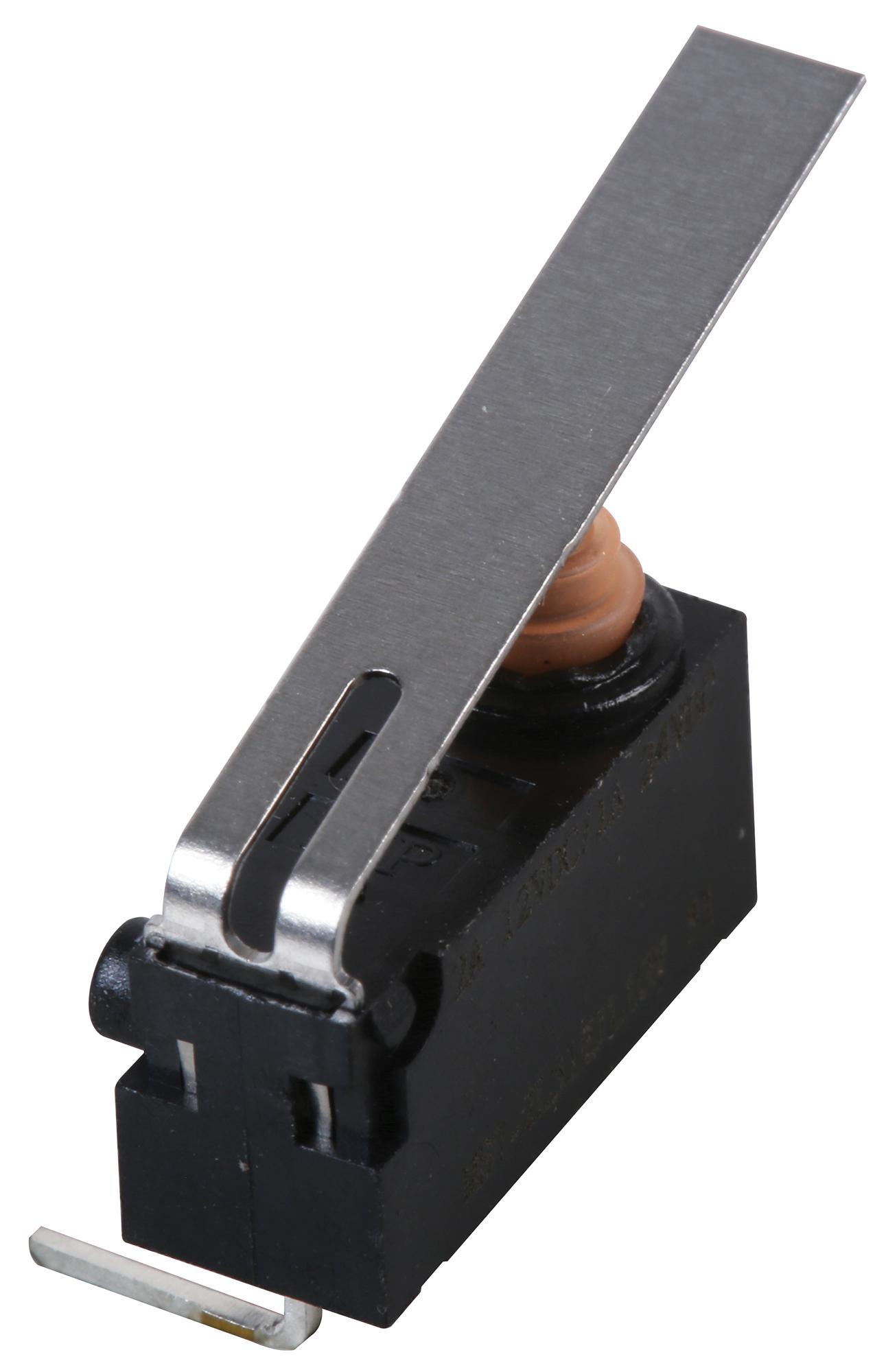

MULTICOMP PRO MP006231 Snap Action Microswitch
This versatile snap action microswitch features a compact design with multiple actuator options, including pin plunger, long hinge lever, and simulated roller lever, suitable for automation, household appliances, and automotive industries. It supports resistive loads up to 2A at 12V DC, with high durability over 1,000,000 mechanical cycles. The sealed IP67 rating ensures reliable performance in harsh environments. Operating temperatures range from -40°C to +85°C, making it ideal for demanding applications requiring precise switching and durable construction.
MULTICOMP PRO MP006231 Snap Action Microswitch Specifications:
- Contact Rating: 2A at 12V DC / 1A at 24V DC
- Mechanical Durability: 1,000,000 cycles minimum
- Electrical Durability: 100,000 cycles minimum
- Contact Resistance: 150mΩ max
- Insulation Resistance: 100MΩ min (at 500V DC)
- Dielectric Strength: 600V AC between terminals, 1500V AC between terminals and ground
- Operating Temperature: -40°C to +85°C
- Sealed: IP67
- Various actuator options including pin plunger, hinge lever, and roller lever
- Operating Force: varies from 50gF to 122gF depending on model
- Total Travel: ranges from 5.1mm to 9.5mm depending on model
- Rated Voltage: 12V DC to 24V DC
- Resistive Load: up to 2A
Buy the Buy multicomp PRO Snap Action Microswitch Part Number MP006231 Online
Experience high durability and versatile performance with the multicomp PRO Snap Action Microswitch MP006231. This reliable switch supports resistive loads up to 2A at 12V DC, with a sealed IP67 rating for harsh environments. Its compact design features multiple actuator options such as pin plunger, hinge lever, and roller lever, suitable for automation, automotive, and household appliances. Operating temperatures from -40°C to +85°C ensure broad application versatility. Its robust electrical and mechanical durability guarantees over 1 million cycles, making it an ideal choice for demanding control and switching tasks.
Buy multicomp PRO MP006231 today and enjoy reliable switching performance with IP67 sealing and multiple actuator options designed for demanding environments.
