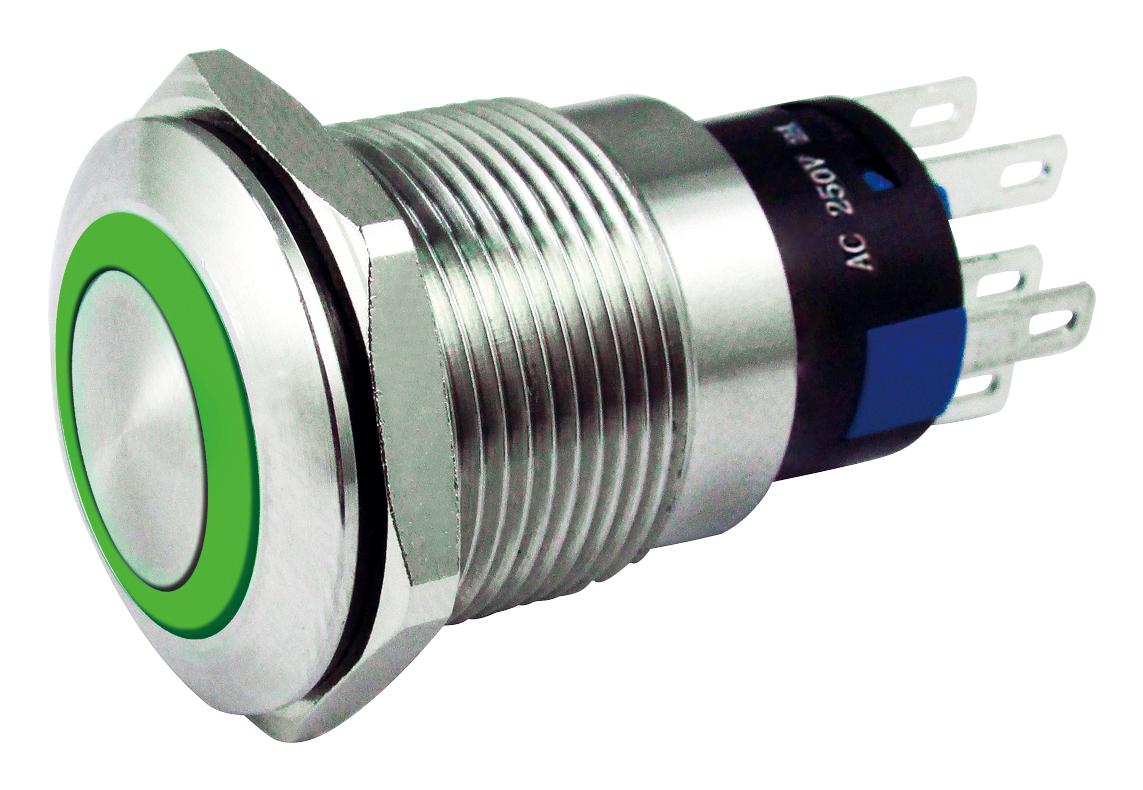

MULTICOMP PRO MC010921 Illuminated Vandal Switch
A high-quality illuminated vandal-resistant switch designed for reliable operation in harsh environments. It features a stainless steel body with options for flush or domed top mountings, suitable for 19mm mounting holes. The switch supports various contact configurations, including 1NO + 1NC and 2NO + 2NC, with LED indicators in red, green, and blue. Rated at 250V and 5A, it withstands electrical and mechanical stresses, ensuring long service life. Ideal for industrial and security applications requiring durability, corrosion resistance, and clear visual indication.
MULTICOMP PRO MC010921 Illuminated Vandal Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colour: Red / Green / Blue
- Switch Operation: Maintained / Momentary
- Contact Configuration: 1NO + 1NC / 2NO + 2NC
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: Operating extremes 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Damage limits 500 m/s², Operating limits 200 m/s²
- Mechanical Life: 1,000,000 cycles
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 122g
Buy the Buy multicomp:ro Illuminated Vandal Resistant Switch Part Number MC010921 Online
Experience the durability and reliability of the illuminated vandal-resistant switch from multicomp:ro. Crafted with a stainless steel body, it features LED indicators in red, green, and blue, ensuring clear visibility. Suitable for harsh environments, it supports multiple contact configurations and has a rated voltage of 250V at 5A. The switch is IP67 rated, offering excellent protection against dust and water ingress. Perfect for industrial, security, and control applications that demand ruggedness, long life, and dependable operation.
Get multicomp:ro MC010921 today—designed for durability and reliable performance in harsh conditions.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010921?
You can click on the BUY or RFQ button to purchase MC010921 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010921?
You can download the MC010921 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010921?
MULTICOMP PRO
