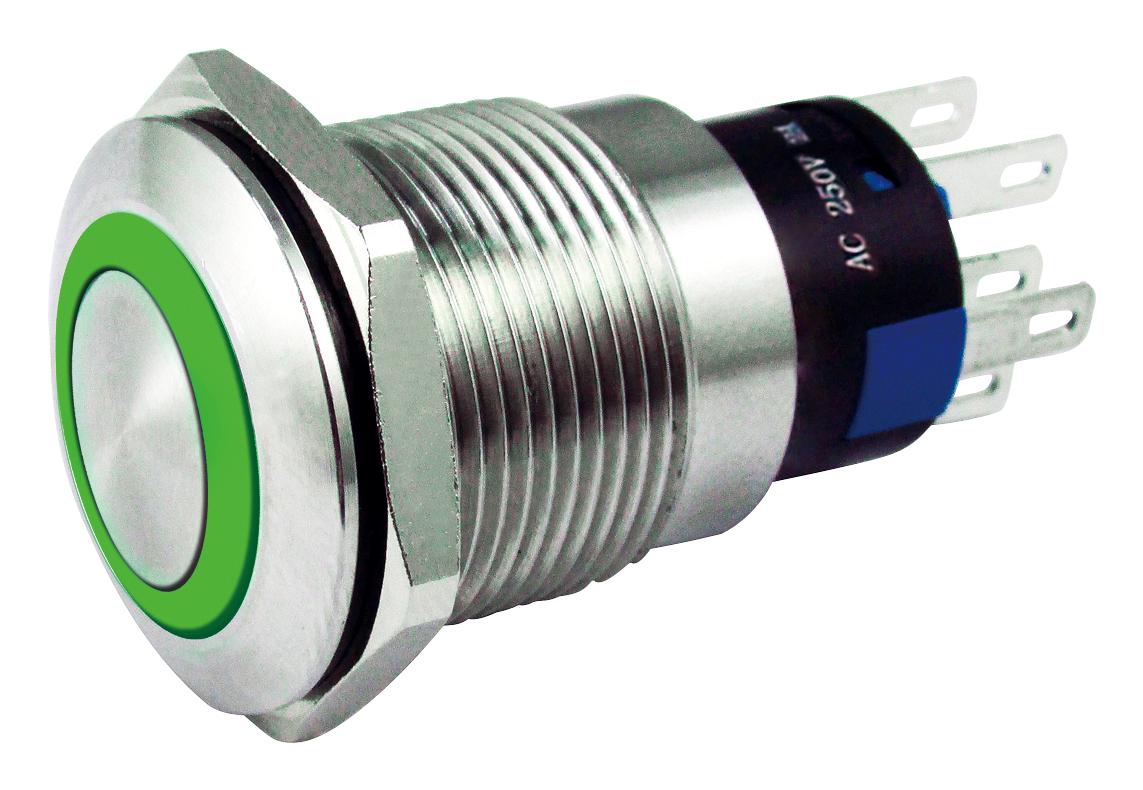

MULTICOMP PRO MC010924 Vandal Resistant Switch
The illuminated vandal resistant switch combines durability with bright LED illumination, designed for industrial and public environments. With a stainless steel body and options for flush or domed top, it provides high dielectric strength, multiple contact configurations, and waterproof protection. Suitable for harsh conditions, it supports various LED colors—red, green, and blue—and has a mechanical life of 1,000,000 operations. Its compact size and robust construction make it ideal for industrial equipment, control panels, and public safety installations, ensuring long-lasting performance under demanding conditions.
MULTICOMP PRO MC010924 Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colour: Red / Green / Blue
- Switch Operation: Maintained / Momentary
- Contact Configuration: 1NO + 1NC / 2NO + 2NC
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MO Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Operating limits: 200 m/S², Damage limits: 500 m/S²
- Mechanical Life: 1,000,000 cycles
- Electrical Life: 250,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 122g
Buy the Multicomp MC010924 – Reliable Illumination for Industrial Applications
Purchase the vandal resistant illuminated switch today for robust performance in harsh environments. Featuring bright LEDs, stainless steel construction, waterproof IP67 protection, and various contact configurations, this switch is ideal for industrial control panels, safety systems, and public facilities. Its high dielectric strength, long mechanical life of over one million cycles, and corrosion-resistant materials ensure reliability and safety. Easy to install with solder terminals, it provides durable operation and clear visual indication with red, green, or blue illumination to meet your operational needs.
Get multicomp MC010924 today—built for precision, long-lasting durability, and reliable illumination in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010924?
You can click on the BUY or RFQ button to purchase MC010924 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010924?
You can download the MC010924 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010924?
MULTICOMP PRO
