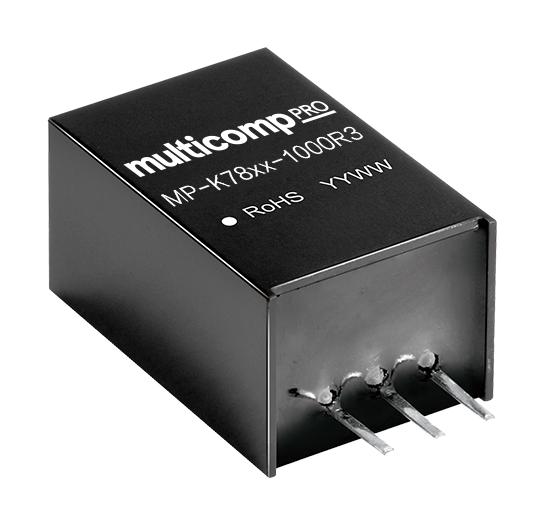

MULTICOMP-PRO MPK78051000R3 DC-DC Converter Module
The MP-K78xx-1000R3 series are high-efficiency switching regulators designed as compact, non-isolated board mount DC/DC converters. They serve as ideal replacements for linear regulators like the LM78xx series, offering up to 96% efficiency, low-noise output, and support for both positive and negative voltages. These modules operate within a temperature range of -40°C to +85°C, feature short-circuit protection, and are suitable for industrial control, instrumentation, and power supply applications. They provide stable voltage regulation with minimal no-load current, ensuring energy-efficient performance across various systems.
MULTICOMP-PRO MPK78051000R3 DC-DC Converter Module Specifications:
- Efficiency: Up to 96%
- Operating Temperature: -40°C to +85°C
- Input Voltage Range: 6-36 VDC (depending on model)
- Output Voltage: Configurable (e.g., 3.3V, 5V, 9V, 12V, 15V)
- Output Current: Up to 1A
- Ripple & Noise: < 20mVp-p (at 20MHz bandwidth)
- Short-circuit Protection: Self-recovery, continuous
- Dimensions: 17.5mm x 11.5mm x 9mm
- Weight: Approx. 3.8g
- Case Material: Flame-retardant black plastic (UL94 V-0)
- Frequency: 420–780 KHz depending on model
- EMC: Meets CISPR32/EN55032 Class B, IEC/EN 61000-4 series immunity standards
Buy the Multicomp Series MP-K78xx 1000R3: High-Efficiency DC-DC Converter Module
Enhance your power management with the reliable, energy-efficient Multicomp Series MP-K78xx 1000R3 DC-DC converters. These modules provide stable voltage outputs with high efficiency up to 96%, supporting a wide input voltage range of 6 to 36 volts. Designed with advanced features like low no-load input current, short-circuit protection, and a compact form factor, they are ideal for industrial control, instrumentation, and power supply systems. Easy to install and suitable for operating temperatures from -40°C to +85°C, these converters ensure your projects remain powered efficiently and safely.
Order your Multicomp Series MP-K78xx 1000R3 DC-DC converter today and ensure reliable, efficient power conversion for your industrial and instrumentation projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MPK78051000R3?
You can click on the BUY or RFQ button to purchase MPK78051000R3 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MPK78051000R3?
You can download the MPK78051000R3 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MPK78051000R3?
MULTICOMP-PRO
