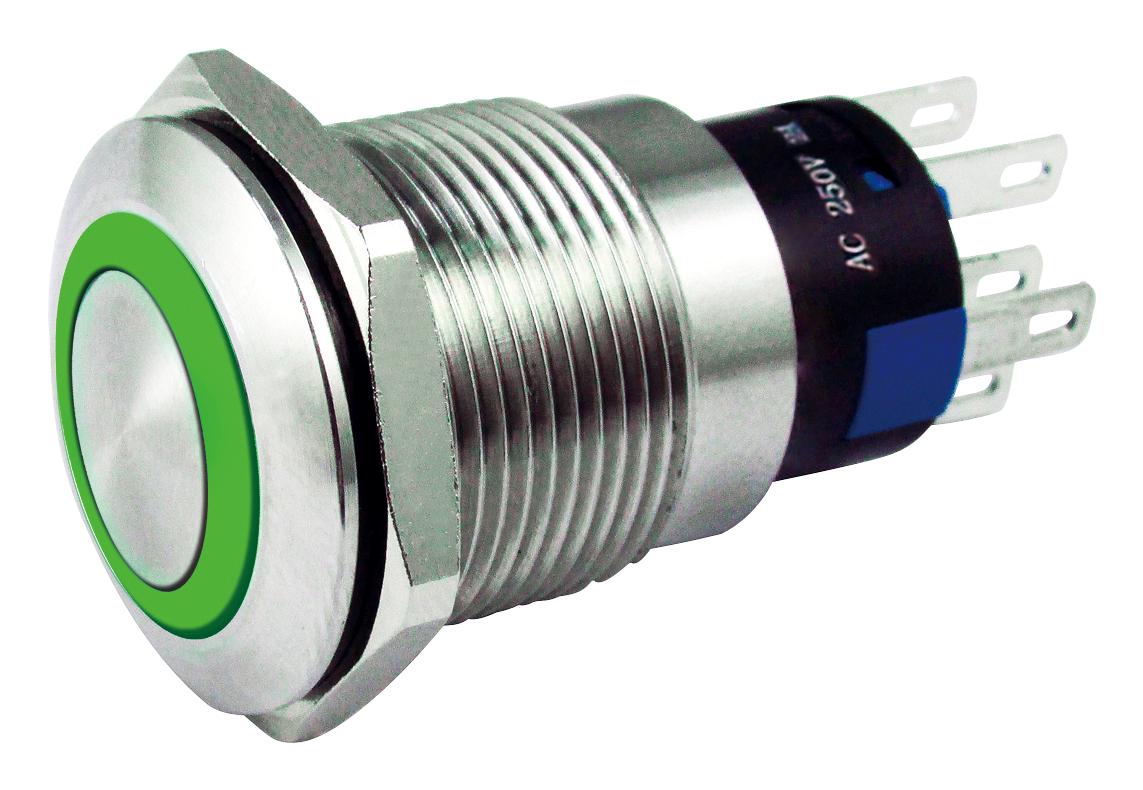

MULTICOMP PRO MC010930 Vandal Resistant Switch
The illuminated vandal resistant switch offers reliable operation with options for flush or domed top mounting, supporting various contact configurations and LED colors. Made of stainless steel, it features high dielectric strength, low contact resistance, and an IP67 degree of protection. Suitable for harsh environments, it withstands vibrations, shocks, and extreme temperatures, making it perfect for industrial and security applications. Available in maintained and momentary switch types, it supports 250V rated voltage and 5A rated current, with LED indicator options in red, green, and blue for visual status indication.
MULTICOMP PRO MC010930 Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colours: Red, Green, Blue
- Switch Operation: Maintained and Momentary
- Contact Configuration: 1NO + 1NC / 2NO + 2NC (varies by model)
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; between terminals: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MO Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 200 m/S² (Operating), 500 m/S² (Damage)
- Mechanical Life: 1,000,000 cycles (Momentary), 250,000 (Maintained)
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 122g
Buy the Buy multicomp illuminated vandal resistant switch Part Number MC010930 Online
Purchase the multicomp vandal resistant illuminated switch online for reliable performance in tough environments. Featuring stainless steel construction, IP67 protection, and multiple contact configurations, this switch supports both maintained and momentary operation with LED indicators for clear status indication. Ideal for industrial equipment, security systems, and harsh conditions, it offers high dielectric strength, low contact resistance, and durability for long-term use. Easy to install with solder terminals, ensuring secure connections and stable operation for demanding applications.
Get multicomp illuminated vandal resistant switch MC010930 today—designed for durability, high resistance to environmental hazards, and easy installation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010930?
You can click on the BUY or RFQ button to purchase MC010930 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010930?
You can download the MC010930 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010930?
MULTICOMP PRO
