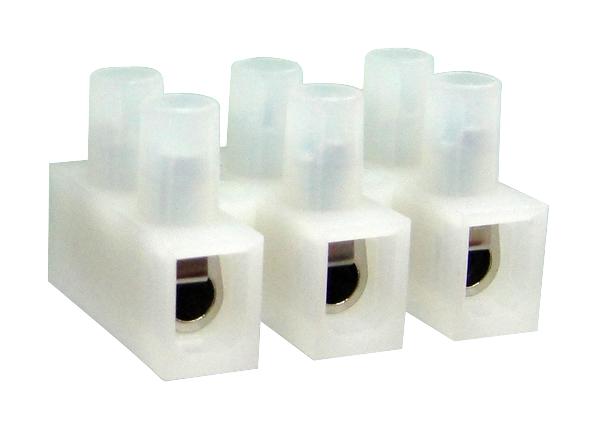

MULTICOMP PRO MC001820 Dual-Row Terminal Block

The MC001820 from Multicomp Pro is an H-type dual-row terminal block with a 8.2mm pitch and six poles, designed for reliable industrial wiring. It supports wire sizes from 12 AWG to 22 AWG, with a current rating of 20A and a voltage rating of 600V. The terminal's stripped wire length is 4.5mm to 5.5mm, operating continuously up to 105°C in a temperature range of -30°C to +85°C. Featuring insulation withstand voltage of at least 2000VAC and resistance exceeding 2000 MΩ at 500VDC, it’s made from UL94-V2 white PA66, with steel screws and brass cage clamps, ensuring durability and safety.

View MC001820Datasheet [pdf]

Buy the Multicomp Series Dual-Row Terminal Block: MC001820

Purchase the Multicomp MC001820 dual-row terminal block online for superior industrial wiring solutions. Rated at 20A and 600V, it features 8.2mm pitch and six poles, supporting wire sizes from 12 to 22 AWG. Designed with UL94-V2 PA66 insulation, zinc-plated steel screws, and nickel-plated brass cage clamps, it ensures safety and durability. Operating up to 105°C and working effectively at temperatures from -30°C to +85°C, this terminal block offers reliable electrical connections, making it ideal for industrial and automation applications.

Get Multicomp MC001820 today—built for durability and reliable industrial wiring connections.
