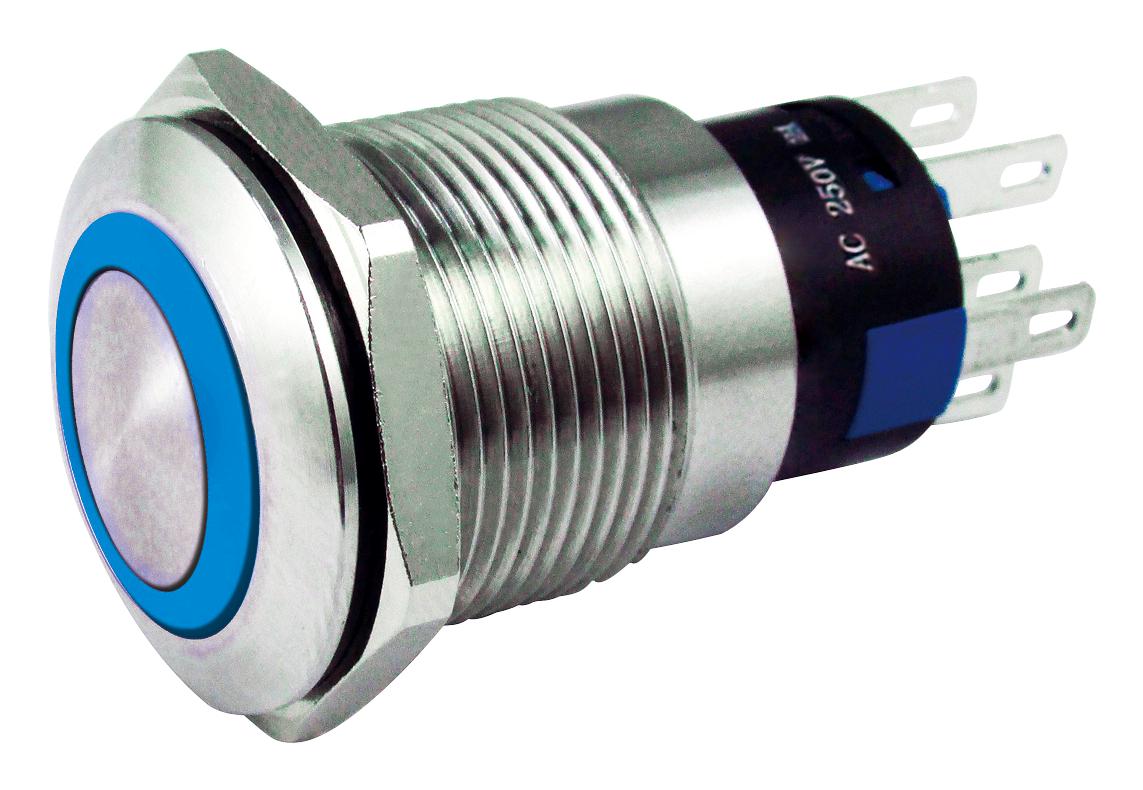

MULTICOMP PRO MC010932 Vandal Resistant Switch
The illuminated vandal resistant switch is designed for robust use in demanding environments, featuring a stainless steel body, various contact configurations, and LED illumination in red, green, and blue. Available in both maintained and momentary operation types with multiple contact arrangements, it offers high dielectric strength, IP67 protection, and temperature resilience from -30°C to +80°C. Ideal for industrial, security, and outdoor control applications, this switch combines durability with ease of integration through solder terminals and multiple mounting options, ensuring long service life and reliable performance.
MULTICOMP PRO MC010932 Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colour: Red, Green, Blue
- Switch Operation: Maintained, Momentary
- Contact Configuration: 1NO + 1NC, 2NO + 2NC, 4NO + 1NC
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial)
- Insulation Resistance: Min. 100MΩ (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude 0.5mm
- Shock Resistance: 200 m/S² (Operating), 500 m/S² (Damage)
- Mechanical Life: 1,000,000 cycles (Momentary), 250,000 cycles (Maintained)
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder
- Weight: 122g
Buy the Itluminated Series Vandal Resistant Switch: MC010932
Discover the durable and reliable vandal resistant switch designed for harsh environments, featuring stainless steel construction, IP67 sealing, vibrant LED indicators, and various contact configurations, perfect for industrial, security, and outdoor applications. Easy to install with solder terminals and tested for high dielectric strength, vibration, and shock resistance, this switch ensures long-lasting performance. Whether you need maintained or momentary operation, choose this high-quality product to enhance safety and control in demanding applications. Shop online now for fast, secure delivery.
Order your Itluminated Series Vandal Resistant Switch MC010932 today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010932?
You can click on the BUY or RFQ button to purchase MC010932 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010932?
You can download the MC010932 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010932?
MULTICOMP PRO
