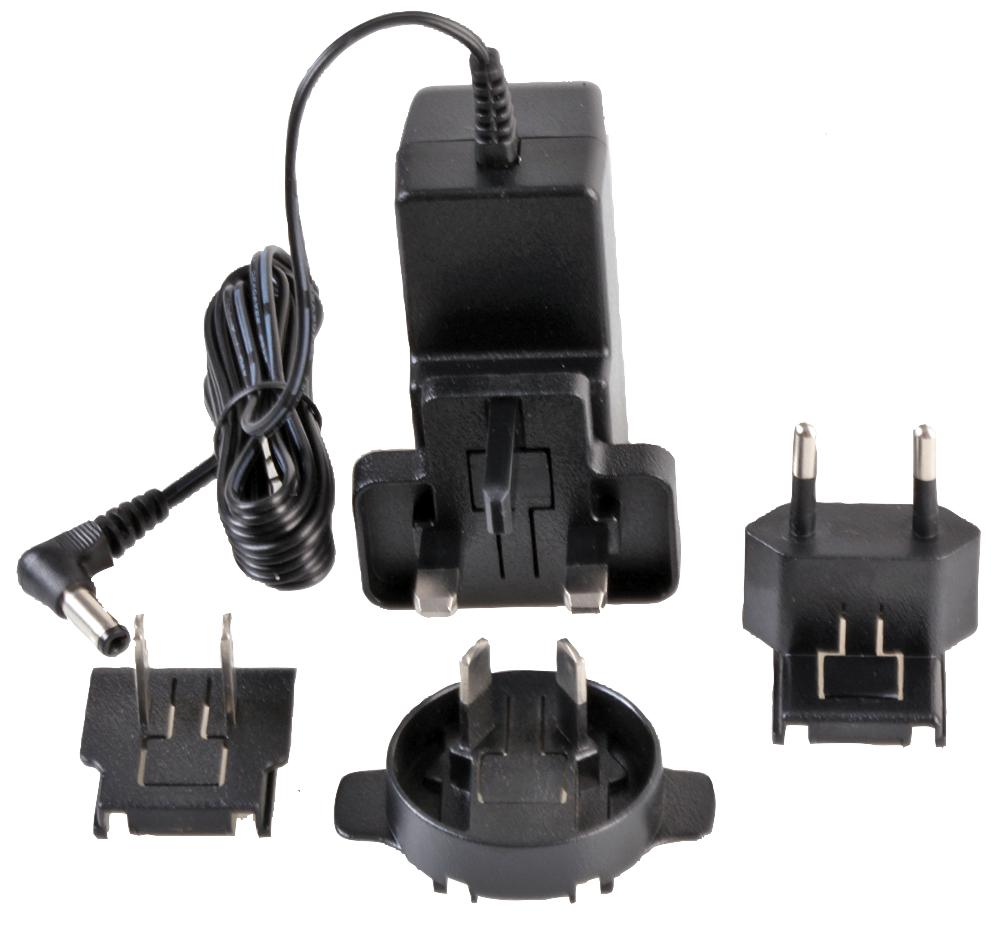

MULTICOMP PRO MP001982 Wall Plug Adapter
This 12W interchangeable wall plug adapter offers reliable 12V DC output at 1A, suitable for various electronic devices requiring stable power. It features interchangeable AC heads for worldwide compatibility, including UK, Euro, USA, and AU plugs, making it ideal for international usage. The power supply complies with Level VI efficiency standards, ensuring energy conservation. Built with safety in mind, it includes over-voltage and over-load protections, and meets multiple safety certifications such as UL, TUV-GS, and SAA. Its compact size and high MTBF of 50,000 hours make it ideal for portable, industrial, and embedded applications, performing efficiently within 0°C to +40°C. Designed for dependability, it offers minimal ripple and noise, ensuring clean power for sensitive electronics.
MULTICOMP PRO MP001982 Wall Plug Adapter Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 47Hz to 63Hz
- Input Current Max: 0.5A
- AC Heads: UK, Euro, USA & AU
- Output Voltage Rating: +12V
- Output Current Range: 1A
- Output Connection: 2.1mm x 5.5mm x 12mm Center Positive, Right angle
- Total Output Regulation: 42%
- Line and Load Regulation: 15%
- Ripple & Noise: 250m Vp-p
- Efficiency Min: 82.96%
- Over Voltage Protection: 25V DC
- Over Load Protection: 2.5A Auto-Recovery
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +60°C
- Operating Humidity: 20% to 85%
- Storage Humidity: 5% to 95%
- High-Pot: 3000V AC 10mA 1min
- Leakage Current: 0.25mA max
- Safety Standards: UL/CUL, TUV-GS, SAA, T-License
- EMI Standards: FCC, CE, RCM
- MTBF: 50,000 hours
- Dimensions: Max 70mm x 32.8mm x 49mm
- Weight: 82g
Buy the Buy multicomp Wall Plug Adapter Part Number MP001982 Online
Enhance your electronic projects with our reliable 12W wall plug adapter, featuring 12V at 1A output, interchangeable AC heads for worldwide use, high efficiency at Level VI, and multiple safety features. Its compact design is perfect for portable devices, industrial systems, and embedded applications. Designed for durability and safety with UL, TUV-GS, and other certifications, it provides stable power with minimal ripple and noise. Easy to use across different regions, making it the ideal power supply for international professionals and hobbyists alike.
Order your multicomp series MP001982 12W wall plug adapter today and ensure reliable and safe power delivery for your electronic projects.
