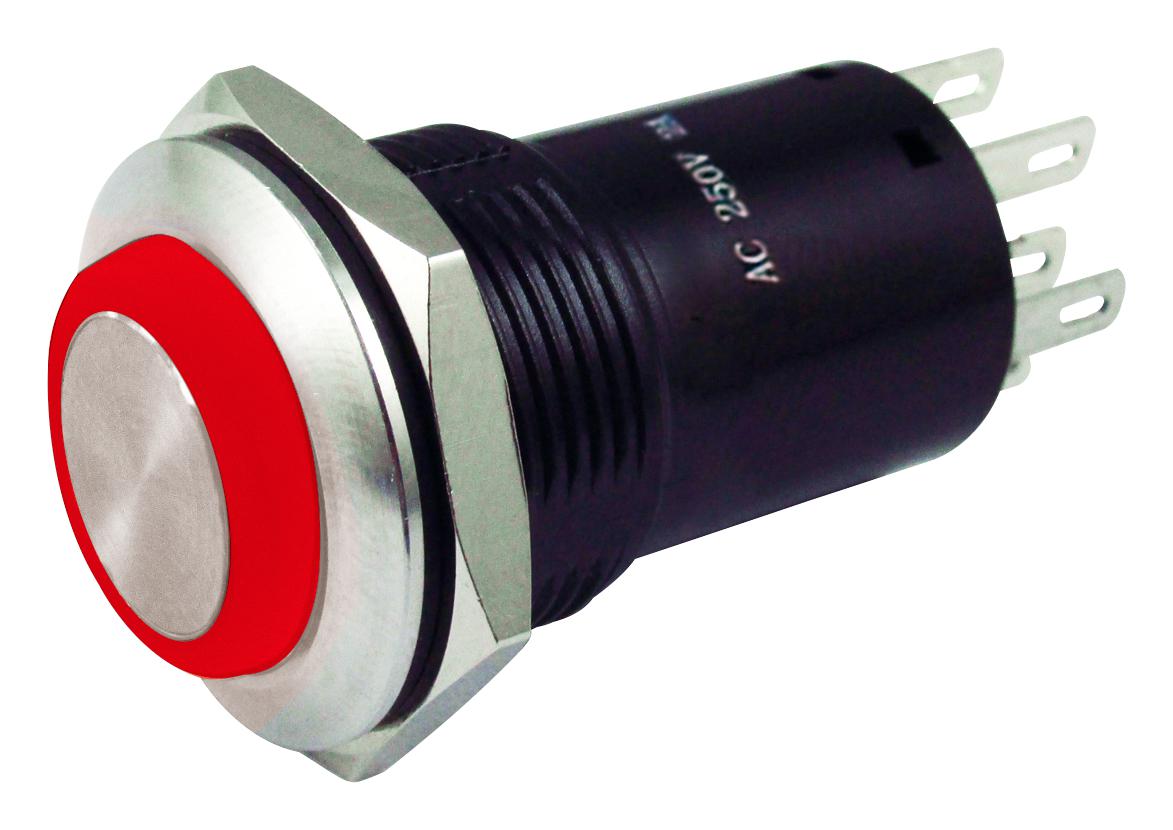

MULTICOMP PRO MC010943 Vandal Resistant Switch
This illuminated vandal resistant switch features a prominent mount top, durable stainless steel construction, and silver contacts. It is rated for 250V and 5A and includes LED indicators in blue, green, or red. Suitable for panel mounting with a 19mm hole diameter, it offers multiple contact configurations such as 4NO + 1NC or 2NO + 2NC, with maintained or momentary operation. Its robust design ensures IP65 protection, making it ideal for industrial environments that require reliable, vandal-proof switch solutions with high dielectric strength and resistance to vibration and shock.
MULTICOMP PRO MC010943 Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colour: Blue, Green, Red
- Switch Operation: Maintained or Momentary
- Contact Configuration: 1NO + 1NC, 2NO + 2NC, etc.
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial), 100MΩ Min. (500V DC)
- Insulation Resistance: 100MΩ Min.
- Operating Humidity: 45–85% RH
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, amplitude 0.5mm
- Shock Resistance: 200 m/S² operating, 500 m/S² damage
- Mechanical Life: 1,000,000 cycles (momentary), 100,000 (maintained)
- Electrical Life: 50,000 cycles
- Degree of Protection: IP65
- Terminal Style: Solder terminal
- Weight: 122g
- Panel Cutout: 19mm diameter
- Dimensions: Refer to datasheet diagrams
Buy the Buy Multicomp Vandal Resistant Switch Part Number MC010943 Online
Purchase the high-quality, durable vandal resistant switch online today. Designed with IP65 protection and multiple contact configurations, it is perfect for industrial applications requiring rugged, reliable switches with LED indicators in blue, green, or red. This switch features stainless steel construction, high dielectric strength, and shock and vibration resistance, making it ideal for outdoor or vandal-prone environments. Secure your project’s reliability by ordering this robust switch now and enjoy quick delivery for your industrial or control panel needs.
Order your Multicomp Series MC010943 vandal resistant illuminated switch today and ensure reliable operation in challenging environments.
