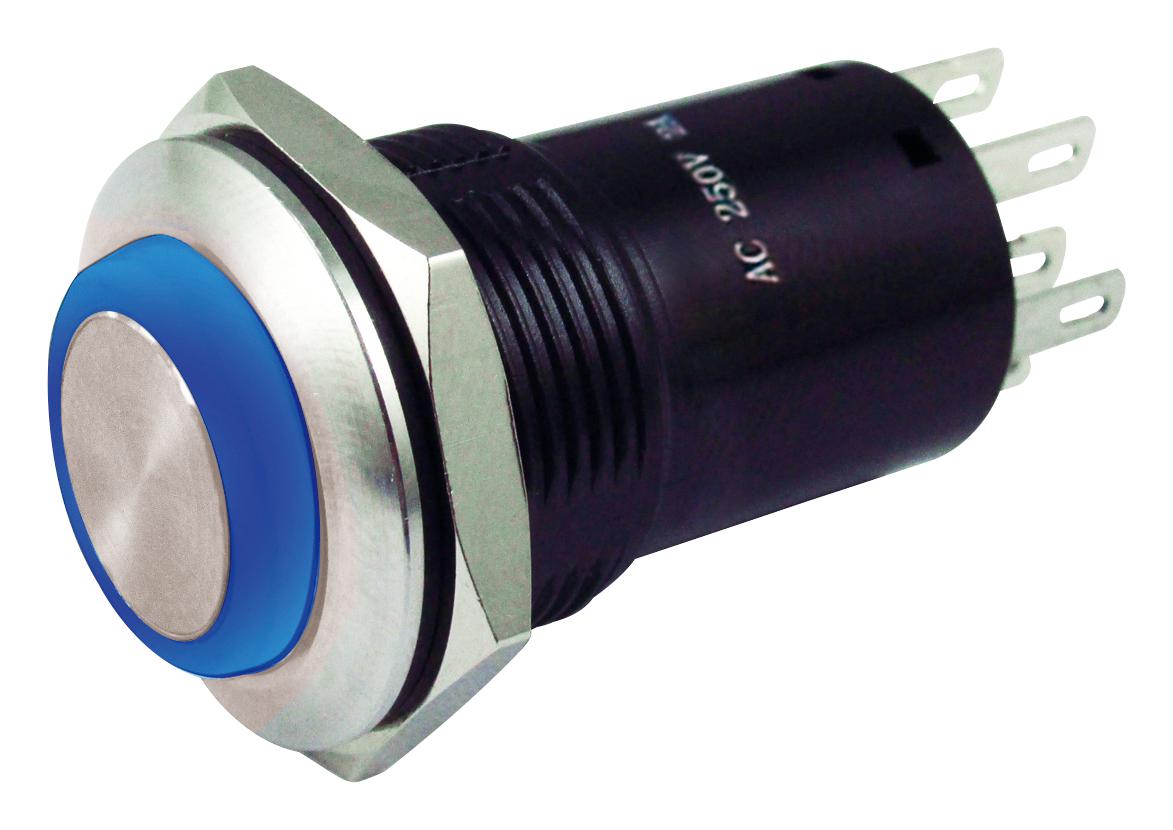

MULTICOMP PRO MC010944 Vandal Resistant Switch
The illuminated vandal resistant switch is designed for industrial environments, featuring a sturdy stainless steel body and a 19mm mounting hole. It offers multiple contact configurations, including 1NO + 1NC and 2NO + 2NC, with LED illumination in blue, green, or red for easy status indication. Rated for 250V and 5A, it is suitable for demanding applications requiring durability, shock and vibration resistance, and IP65 protection. The switch supports a wide operating temperature range of -25°C to +50°C and is ideal for control panels, machinery, and outdoor installations.
MULTICOMP PRO MC010944 Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colour: Blue / Green / Red
- Switch Operation: Maintained or Momentary
- Contact Configuration: 1NO + 1NC / 2NO + 2NC
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MO Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Damage limits: 500 m/S²; Operating limits: 200 m/S²
- Mechanical Life: Momentary: 1,000,000 cycles; Maintained: 100,000 cycles
- Electrical Life: 50,000 cycles
- Degree of Protection: IP65
- Terminal Style: Solder terminal
- Weight: 122g
- Panel Thickness: 0.5mm to 6mm
- Terminal Width: 3x0.5mm
- Gasket: Included
Buy the Multicomp Vandal Resistant Switch – Reliable Control Components for Industrial Applications
Purchase the multicomp vandal resistant illuminated switch online today to ensure durable, reliable control in harsh environments. Featuring multiple contact configurations and LED indicator lights, this switch is ideal for industrial panels, outdoor applications, and machinery controls. Its IP65 protection rating guarantees resistance against dust and water ingress, while the stainless steel construction offers exceptional durability. Easy to install with a 19mm mounting hole, it supports a broad temperature range from -25°C to +50°C, making it perfect for demanding industrial use. Order now for quick delivery and enhanced control solutions.
Buy Multicomp vandal resistant switch now and experience unmatched durability and reliable control for industrial environments.
