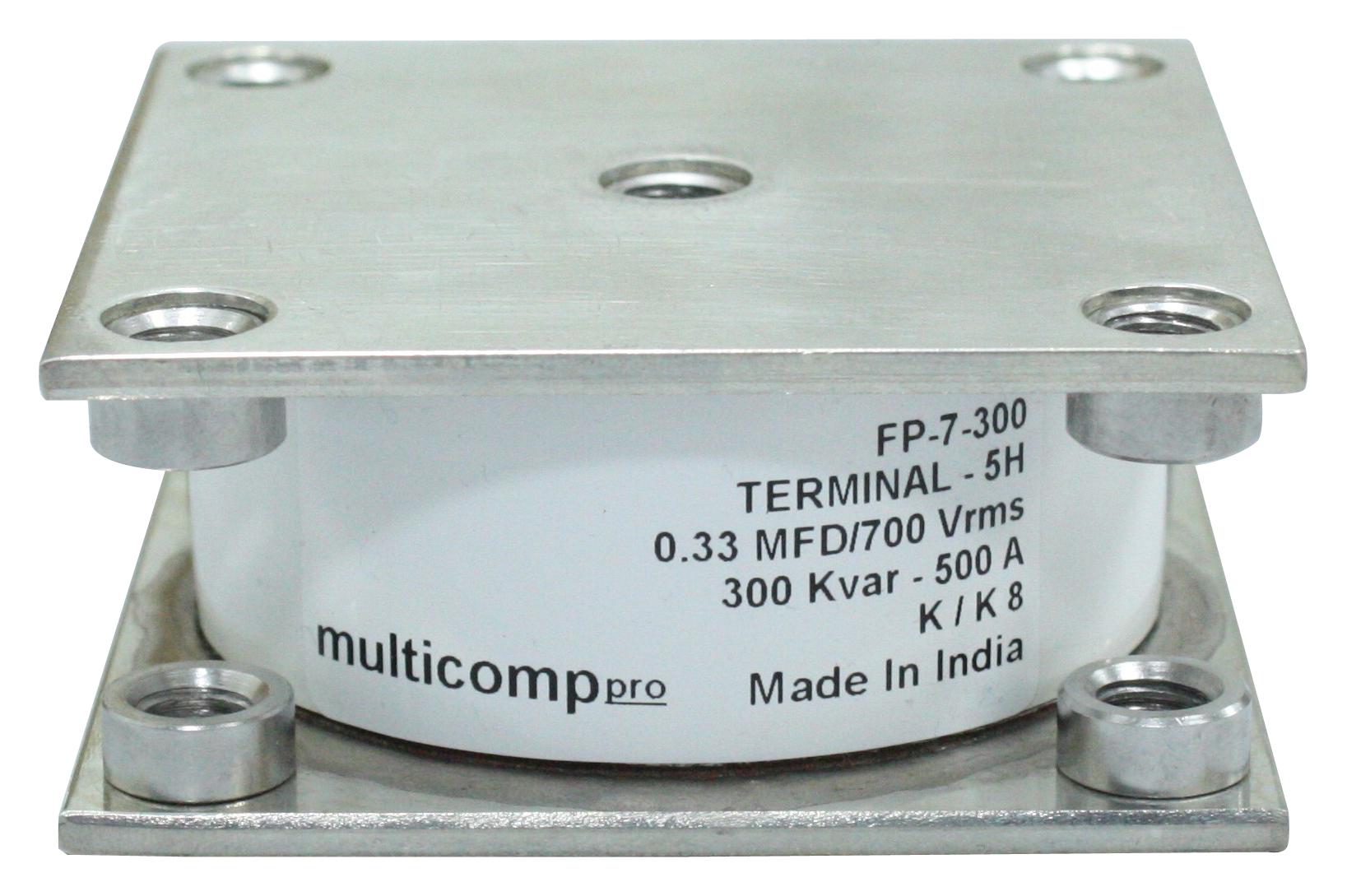

MULTICOMP PRO MP004093 Power Film Capacitor
Power film capacitors with screw/stud terminals are designed for industrial applications, featuring polypropylene dielectric and self-healing properties. Rated for frequencies up to 700kHz, these capacitors operate at a maximum core temperature of 85°C. They are RoHS compliant, flame-retardant UL94-VO, and offer various capacitance values ranging from 0.33 µF to 5 µF rated at 400V to 700V. Suitable for power filtering, energy storage, and industrial equipment, they have robust dimensions and a terminal style supporting reliable connections in demanding environments.
MULTICOMP PRO MP004093 Power Film Capacitor Specifications:
- Capacitance Range: 0.33 µF to 5 µF at 1kHz
- Rated Voltage: 400V to 700V RMS
- Maximum Operating Temperature: 85°C
- Frequency Range: Up to 700kHz
- Dielectric Material: Polypropylene
- Features: Self-healing, RoHS compliant, flame-retardant UL94-VO
- Terminal Style: Screw/Stud terminals, 5H type
- Dimensions: Approximate length 78 mm with diameter 34 mm
- Tightening Torque: Max 20 Nm
- ESR and Power Ratings: Up to 650 ARMS, 300 KVAR at specified frequencies
Buy the Multicomp Power Capacitors – Reliable Power Film for Industrial Applications
Enhance your industrial power systems by purchasing high-quality power film capacitors online. These reliable capacitors feature polypropylene dielectric and self-healing properties, supporting frequencies up to 700kHz. Designed to operate at temperatures up to 85°C, they are RoHS compliant and flame-retardant UL94-VO. Their robust dimensions and screw/stud terminals ensure secure connections in demanding environments. Ideal for power filtering, energy storage, and industrial equipment, these capacitors deliver exceptional performance, durability, and safety for your critical applications.
Buy Multicomp power film capacitors with screw terminals now and experience unmatched reliability and performance in industrial power filtering and energy storage.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004093?
You can click on the BUY or RFQ button to purchase MP004093 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004093?
You can download the MP004093 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004093?
MULTICOMP PRO
