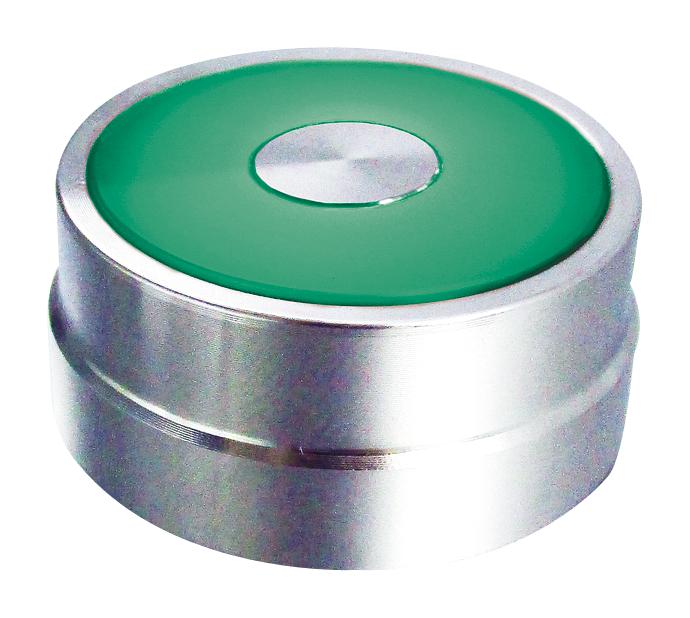

MULTICOMP PRO MC010948 Vandal-Resistant Switch
This flush illuminated vandal-resistant switch features a metal bezel-ring for enhanced durability and IP65 protection. Designed for mounting holes of 22mm or 30mm, it offers a rated voltage of 600V and current of 210A. The switch includes LED indicators in green, red, or blue, powered at 12V AC/DC, with a dielectric strength of 2,000V AC/min between live parts and ground. Suitable for industrial applications, it withstands vibration, shock, and humidity, ensuring reliable operation in demanding environments.
MULTICOMP PRO MC010948 Vandal-Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green, Red, Blue
- Material / Finish: Aluminium
- Dielectric Strength: 2000V AC between live part and ground, 1000V AC between terminals
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45-85% RH (No condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: 1°C to +55°C
- Vibration Resistance: 5-55Hz, amplitude 0.5mm
- Shock Resistance: 1000 m/s² damage limit, 100 m/s² operating limit
- Mechanical Life: Momentary 1,000,000 cycles, Maintained 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Buy Multicomp PRO Vandal-Resistant Switch Part Number MC010948 Online
Enhance your industrial automation setup with our vandal-resistant switch featuring a sturdy metal bezel-ring, IP65 rating, and LED indicators in various colors. Designed for demanding environments, it supports 600V and 210A, with high dielectric strength and vibration resistance. Easy to install with a 22mm or 30mm mounting hole, it offers long mechanical and electrical life, making it ideal for control panels, outdoor equipment, and safety devices. Secure online purchase for dependable operation.
Buy Multicomp PRO MC010948 now and experience unmatched durability, IP65 protection, and reliable industrial performance in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010948?
You can click on the BUY or RFQ button to purchase MC010948 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010948?
You can download the MC010948 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010948?
MULTICOMP PRO
