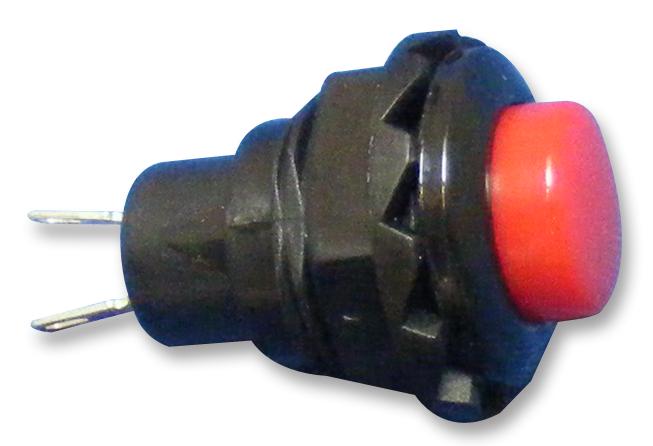

MULTICOMP PRO R13502A05R Pushbutton Switch
The Multicomp Pro R13-502 series pushbutton switches are mechanically operated, featuring a 3A at 125V and 1.5A at 250VAC rating. They have an insulation resistance of at least 100 MΩ at DC 500V, dielectric strength of 1000VAC, and are designed with a red or black nylon 66 button housed in black nylon 66. The switches utilize copper alloy terminals for secure connections, making them ideal for industrial, automation, power management, and process control applications. Durable and reliable, these switches are rated with a 4.6-star user rating and come with a 12-month warranty.
MULTICOMP PRO R13502A05R Pushbutton Switch Specifications:
- Rating: 3A at 125V AC, 1.5A at 250V AC
- Contact Resistance: 50mΩ
- Insulation Resistance: 500V DC 100MΩ 1 min
- Dielectric Strength: 1000V AC 1 min
- Switch Function: 2P SPST OFF-ON
- Housing Material: Nylon 66 (Black)
- Button Color: Red / Black
- Bottom Cover Material: PBT +30% GF
- Terminals: Copper Alloy
- Thread Size: 1/2"-28UNEF
- Dimensions: 20.81 mm (25.8 mm with threading)
- Tolerances: ±0.3mm unless otherwise specified
- Rated for industrial and automation applications
- Rated Current: 3A at 125V AC, 1.5A at 250V AC
- Mechanical durability suitable for heavy-duty use
- Part Number: R13-502A-05-R / R13-502A-05-B
Buy the Buy Multicomp Pro Pushbutton Switch Part Number R13-502A-05-R Online
Discover the reliable Multicomp Pro R13-502A-05-R pushbutton switch, featuring a 3A/125V AC rating and copper alloy terminals for durability. Perfect for industrial automation, power management, and process control, it offers a high insulation resistance and dielectric strength to ensure safe operation. Its nylon housing and button design provide ergonomic operation and long-lasting service life. Easily install with 1/2"-28UNEF threading. Purchase online today to add dependable switching components to your industrial or automation system with confidence.
Order your Multicomp Pro R13-502A-05-R pushbutton switch today and ensure reliable operation in your automation and industrial projects.
