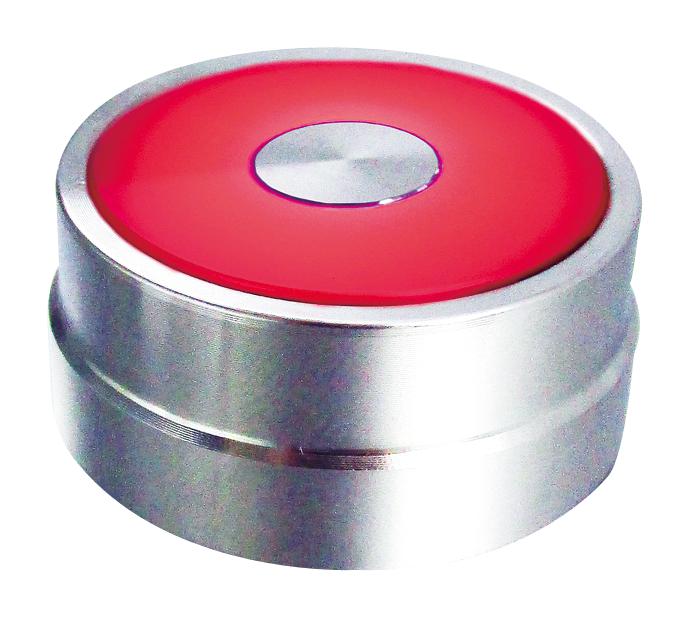

MULTICOMP PRO MC010949 Vandal-Resistant Switch
This is a flush illuminated vandal-resistant switch designed for industrial and outdoor applications, featuring metal bezels and silhouettes with IP65 protection. It supports various mounting hole diameters of 22mm and 30mm, has silver contact blocks, and operates at 12V AC/DC LED voltage with options for green, red, and blue LEDs. The switch can endure high voltage dielectric strength, corrosion-resistant, with a long mechanical and electrical life, making it ideal for control and safety systems in harsh environments.
MULTICOMP PRO MC010949 Vandal-Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminium
- Dielectric Strength: 2000V AC between live parts and ground, 1000V AC between terminals of the same poles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: 1°C to +55°C
- Vibration Resistance: 5 to 55Hz, amplitude 0.5mm
- Shock Resistance: 1000 m/s² damage limit, 100 m/s² operating limit
- Mechanical Life: 1,000,000 (Momentary), 100,000 (Maintained)
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the MultiComp Series Vandal-Resistant Switch: MC010949
Purchase the anti-vandal, illuminated switch online today to enjoy fast delivery and secure shopping. Designed for outdoor and industrial environments, this switch features IP65 protection, multiple LED color options, and durable aluminium construction. Its high rated voltage and current make it suitable for various demanding applications, ensuring long-term reliability and safety in your projects. Don’t wait—order now and enhance your control panel's resilience and operational safety effortlessly.
Buy MultiComp MC010949 now and experience reliable durability and high performance for your control systems.
