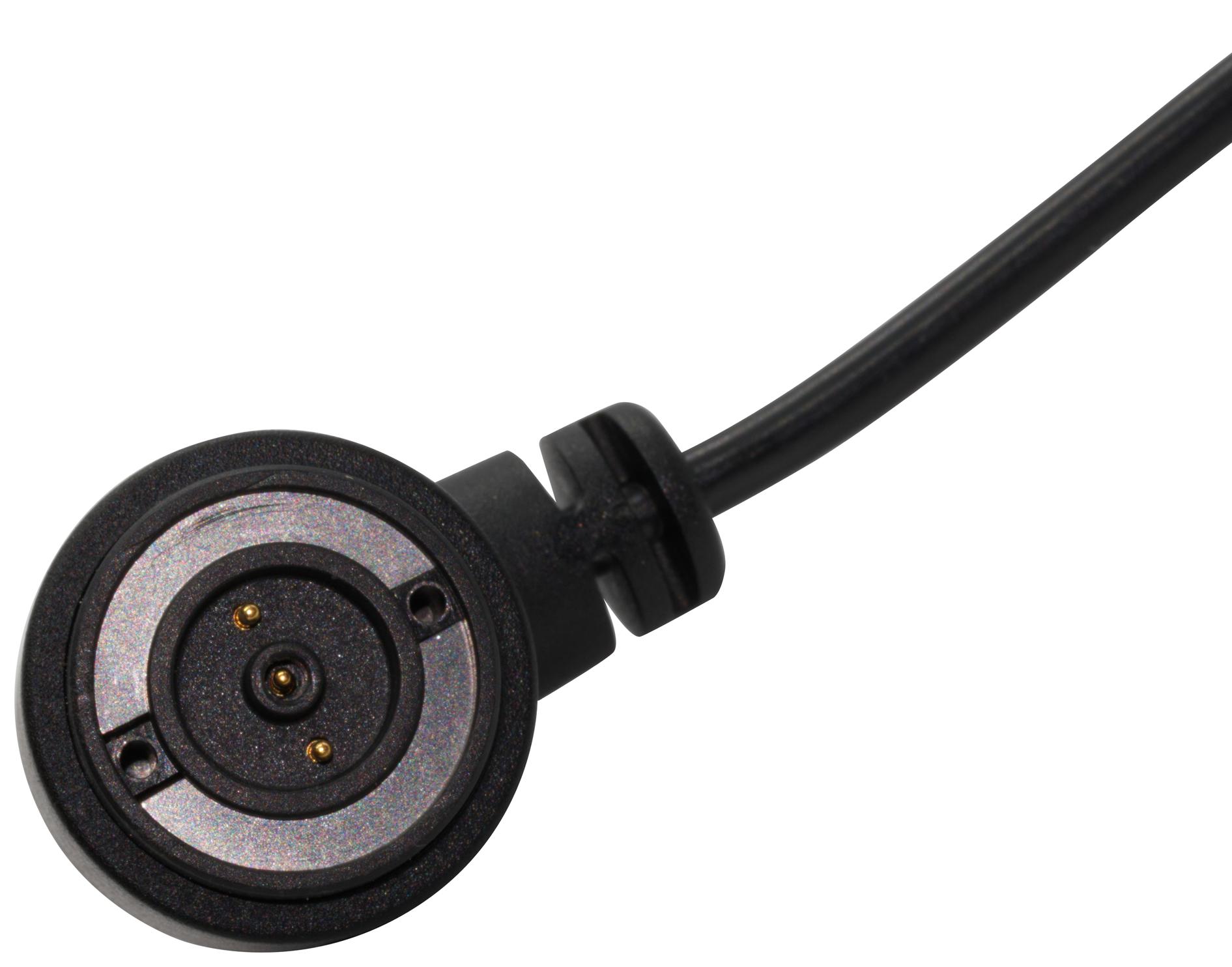

MULTICOMP-PRO MP002497 Magnetic Circular Connector
The MP magnetic connectors are designed for quick-disconnect applications, offering enhanced durability and ease of use. Suitable for low-voltage tasks such as battery charging, they support 5A current at 30V AC/DC. These connectors feature a magnetic mated 360-degree rotation, ensuring reliable contact without compromising connection integrity. Both panel mount and cable variants provide IP67 water resistance, although the magnetic interface itself is not waterproof. They fit a 20.75mm panel cut-out and are ideal for automation, portable devices, safety systems, and process control, providing robust, easy-to-terminate connections in demanding environments.
MULTICOMP-PRO MP002497 Magnetic Circular Connector Specifications:
- Rated Voltage: 30V AC/DC
- Rated Current: 5A
- Insulation Resistance: > 100MQ Min.
- IP Rating: IP67
- Connector Type: Magnetic circular, panel mount and cable variants
- Material: Thermoplastic housing, copper alloy contacts, Nd-Fe-B N50 magnets
- Finish: Au plated contacts, Ni finish magnets
- Cable OD: 3.5mm
- Recommended Panel Thickness: 0.8mm to 4mm
- Panel Cut-Out: 20.75mm
- Connection: Solder or pre-wired options
- Durability: Suitable for low-voltage, portable, automation, safety
- Temperature Rating: Not specified, suitable for standard low-voltage environments
- Certifications: RoHS compliant
- Operation: Magnetic 360-degree rotation, quick disconnect
Buy the Buy multicomp Magnetic Circular Connector Part Number MP002497 Online
Purchase the multicomp Magnetic Circular Connector MP002497 online today for robust, quick-disconnect connections tailored for low-voltage applications. Designed with precision, this connector offers a unique magnetic mating system that allows 360-degree rotation, ensuring consistent contact and ease of use. Ideal for automation, portable devices, process control, and safety applications, it supports a rated current of 5A at 30V AC/DC. Its IP67 rated water-resistant housing guarantees durability in challenging environments, making it a dependable choice for your electrical connectivity needs.
Order your multicomp Magnetic Circular Connector MP002497 today and ensure your projects benefit from reliable, easy-to-use magnetic connection solutions.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002497?
You can click on the BUY or RFQ button to purchase MP002497 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002497?
You can download the MP002497 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002497?
MULTICOMP-PRO
