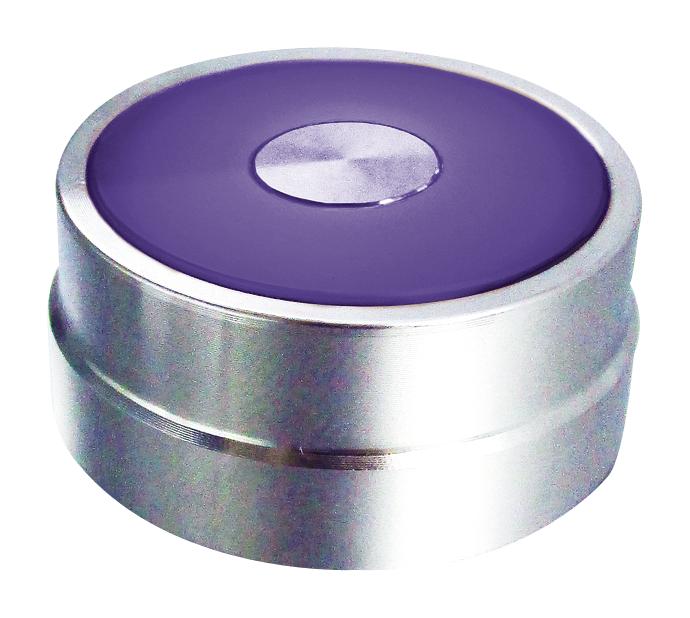

MULTICOMP PRO MC010950 Industrial Illuminated Switch
The flush illuminated vandal-resistant switch offers durable metal construction with a sleek, flush mount design suitable for rugged industrial environments. It features LED indicators with green, red, and blue colors for clear status signaling, rated for 600V and 210A, with dielectric strength of 2,000V AC between live parts and ground. The switch's IP65 protection ensures resistance to dust and water ingress, making it ideal for outdoor or harsh settings. Operating reliably between -30°C and +80°C, it withstands shock and vibration, ensuring long mechanical and electrical life for demanding applications.
MULTICOMP PRO MC010950 Industrial Illuminated Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green, Red, Blue
- Material / Finish: Aluminium
- Dielectric Strength: 2000V AC (live to ground), 1000V AC (between terminals)
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (no condensation)
- Storage Temperature: -30°C to +80°C (no freezing)
- Operating Temperature: 1°C to +55°C
- Vibration Resistance: 5-55Hz, amplitude 0.5mm
- Shock Resistance: 1000 m/s² damage limit, 100 m/s² operating limit
- Mechanical Life: Momentary 1,000,000 cycles, Maintained 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
