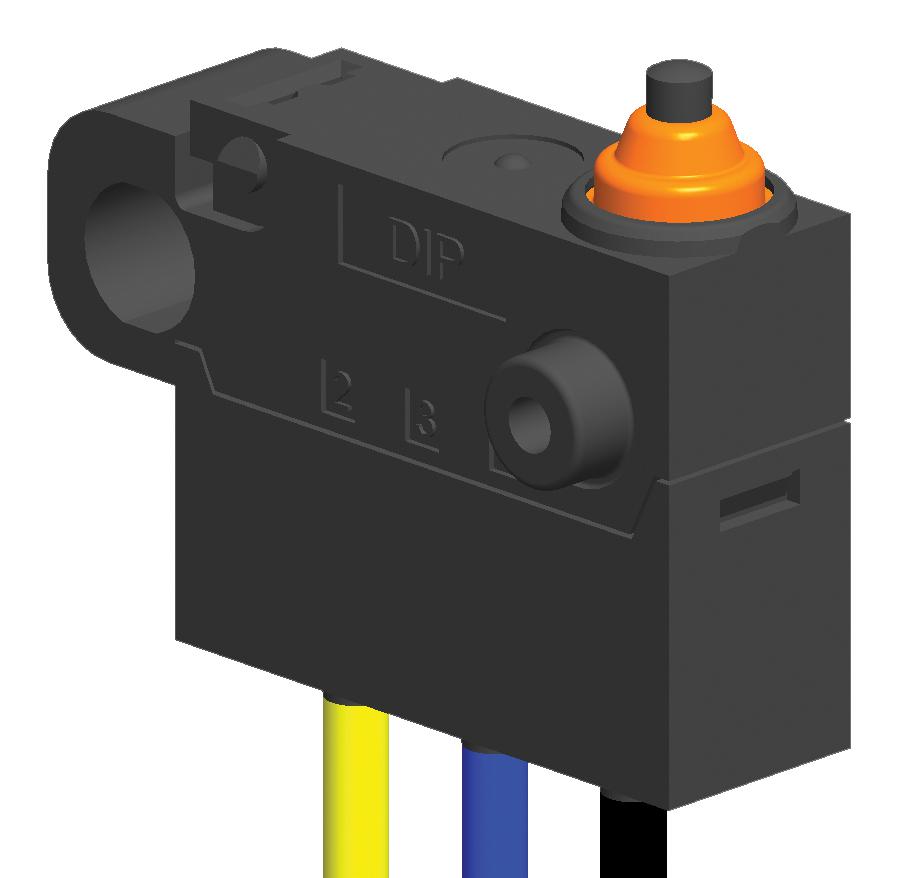

MULTICOMP PRO MP000807 Panel Mount Microswitch
The panel mount snap action microswitch is sealed to IP67 standards, featuring a connectorized lead for easy integration. It measures 14.7mm in length, 5.4mm in width, and 12mm in height, making it suitable for industrial and consumer applications. This high-reliability switch operates within a temperature range of -40°C to +85°C and offers mechanical durability of at least 500,000 cycles. Available with contact ratings of up to 3A at 125V AC, it ensures long-lasting performance in automated systems and electronic devices.
MULTICOMP PRO MP000807 Panel Mount Microswitch Specifications:
- Sealed: IP67
- Dimensions: 14.7mm x 5.4mm x 12mm
- Temperature Range: -40°C to +85°C
- Contact Ratings: 0.1A at 48V DC; 0.1A at 125V AC; 3A at 12V DC; 3A at 125V AC
- Mechanical Durability: 500,000 cycles minimum
- Electrical Durability: 100,000 cycles minimum
- Contact Resistance: 50mΩ max
- Insulation Resistance: 1000MΩ min
- Dielectric Strength: 600V AC between terminals of same polarity for 1 minute
- Operating Force: 1.3N Max, 0.13N Min
- Operating Position: 6.4mm to 6.95mm
- Operating Temperature: -40°C to +85°C
Buy the Multicomp MP000807 – Reliable Sealed Panel Mount Microswitch for Industrial Applications
Order the Multicomp MP000807 panel mount microswitch today to ensure reliable operation and long-lasting durability in your industrial automation and consumer electronic projects. Designed with a sealed IP67 rating, it features easy-to-connect leads, high cycle durability, and versatile contact ratings suitable for various voltage and current levels. Its compact size and operating temperature range of -40°C to +85°C make it ideal for demanding environments. Purchase online now for fast delivery and trusted performance in critical applications.
Get Multicomp MP000807 today—built for precision, durability, and seamless integration in industrial and electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000807?
You can click on the BUY or RFQ button to purchase MP000807 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000807?
You can download the MP000807 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000807?
MULTICOMP PRO
