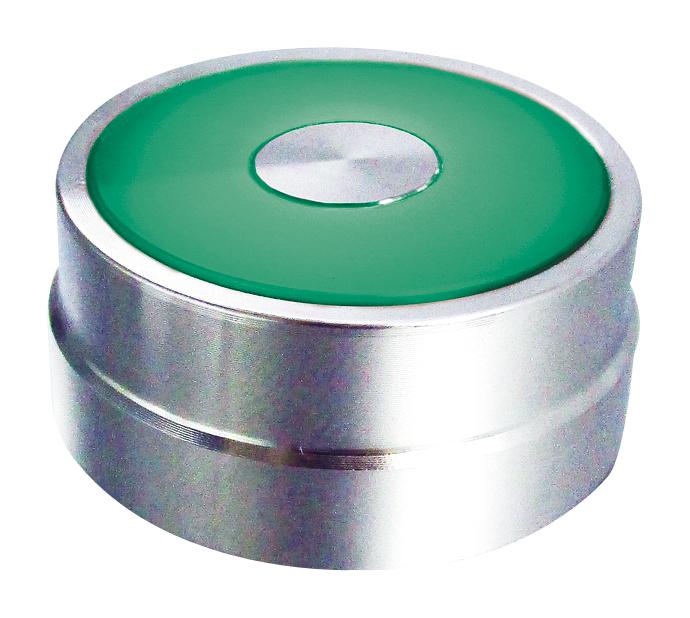

MULTICOMP PRO MC010951 Vandal Resistant Switch
The flush illuminated vandal resistant switch is designed with a metal bezel-ring and silhouette-ring, featuring high durability and IP65 protection. It supports 600V rated voltage and 210A rated current, with LED options in green, red, or blue at 12V AC/DC. Constructed from aluminum, it withstands harsh environments with dielectric strength between live parts and ground of 2,000V AC/min. Suitable for industrial control and automation, its modular contact block simplifies installation and maintenance, ensuring long-lasting reliable performance in demanding applications.
MULTICOMP PRO MC010951 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material: Aluminium
- Dielectric Strength: 2000V AC/min between live part and ground, 1000V AC/min between terminals of same poles
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: 1°C to +55°C
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1,000 m/s² damage limit, 100 m/s² operating limit
- Mechanical Life: Momentary 1,000,000 cycles, Maintained 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Multicomp Pro Series Vandal Resistant Switch: MC010951
Experience the reliability of the vandal resistant switch designed for harsh environments, featuring high current ratings, LED illumination options, and IP65 protection. This switch supports 600V voltage and 210A current, making it ideal for industrial control systems. Its robust aluminum construction ensures long-lasting operation. Easy to install with modular contact blocks, it provides excellent dielectric and insulation resistance, vibration and shock resistance, and a wide operating temperature range. Purchase online now to enhance your control panel's durability and safety.
Get Multicomp Pro MC010951 today—built for durability and reliable industrial control applications.
