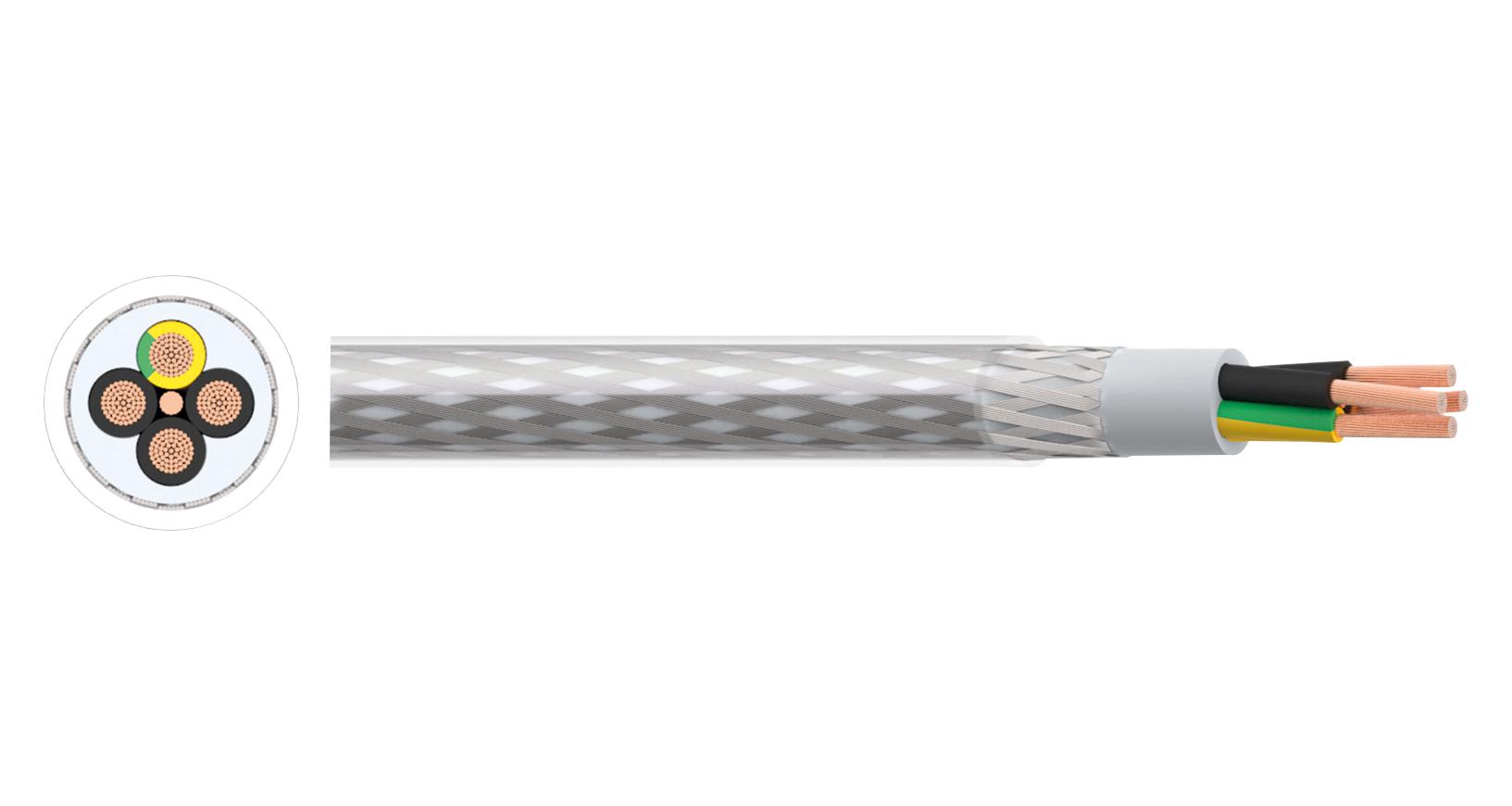

MULTICOMP-PRO PP001604 Flexible Armoured Control Cable
Flexible armoured control cable with multicore structure designed for instrumentation and control applications. Features steel wire braided protection against mechanical loads and interference. Suitable for dry, moist, and wet indoor environments, offering high flexibility. Constructed with PVC insulation, inner sheath, and galvanised steel wire braid armour for durability and electromagnetic shielding. Voltage rating of 300/500V, test voltage of 2.4kV, and temperature ranges from -40°C to +80°C fixed and -5°C to +70°C flexed. Meets VDE standards and RoHS compliance, ideal for industrial control and machinery connections.
MULTICOMP-PRO PP001604 Flexible Armoured Control Cable Specifications:
- Voltage Rating: 300/500V
- Test Voltage: 2.4kV
- Temperature Range: Fixed -40°C to +80°C, Flexed -5°C to +70°C
- Minimum Bending Radius: Fixed 4 x overall diameter, Flexed 12.5 x overall diameter
- Construction: Conductors Class 5 flexible copper wires, PVC insulation, PVC inner sheath, galvanised steel wire braid armour, PVC sheath
- Standards: VDE 0207-363-3, VDE 0285-525-2-51, IEC 60332-1-2 flame retardant
- Conductor Material: Copper, Outer sheath color: transparent
- Physical Dimensions: varies by part number, e.g., approx. diameter 7.5-16.8 mm, weight 79.3-521 kg/km
- Core Identification: Black with white number, Green/Yellow for earth
- Compliance: RoHS, UKAS tested, meets Low Voltage Directive 2014/35/EU
Buy the Buy Multicomp Control Cable Part Number PP001604 Online
Secure your industrial control and instrumentation needs by purchasing the flexible multicore control cable online. Featuring steel wire braided protection, PVC insulation, and compliance with RoHS and VDE standards, this cable ensures durability, flexibility, and interference resistance for indoor environments. Ideal for machinery applications, it provides reliable electrical connectivity with voltage ratings up to 500V and excellent temperature resilience. Order today to benefit from prompt delivery and expert support for your electrical and control system projects.
Buy Multicomp control cable Part Number PP001604 now and experience unmatched reliability and industrial-grade flexibility in your control systems.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP001604?
You can click on the BUY or RFQ button to purchase PP001604 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001604?
You can download the PP001604 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP001604?
MULTICOMP-PRO
