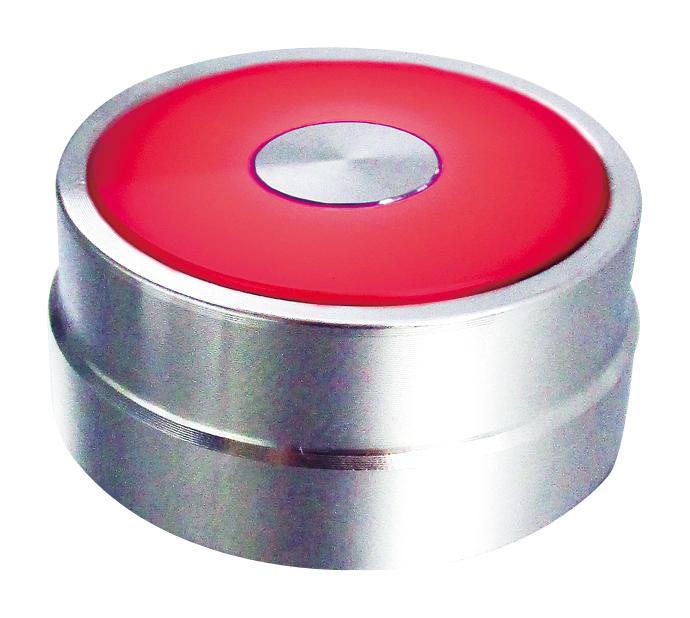

MULTICOMP PRO MC010955 Vandal Resistant Switch
The illuminated vandal-resistant switch offers reliable operation with a metal bezel-ring or silhouette-ring design, rated for 600V and 210A. It features LED indicators with green, red, or blue colors, mounting options for 22mm or 30mm holes, and a dielectric strength of 2,000V AC to ground. Built with aluminum, it withstands harsh conditions, vibration, and shock, and has an IP65 degree of protection. The switch's contact resistance is 50mΩ, with electrical and mechanical lifespans of 100,000 cycles, ensuring durability in industrial environments.
MULTICOMP PRO MC010955 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green, Red, Blue
- Material / Finish: Aluminium
- Dielectric Strength: 2000V AC / min between live parts and ground
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 100MΩ Min. (500V DC)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Damage limit: 1000 m/s², Operating limit: 100 m/s²
- Mechanical Life: Momentary: 1,000,000 cycles; Maintained: 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Operating Temperature: 1°C to 55°C
- Storage Temperature: -30°C to +80°C
- Humidity: 45% to 85% RH (no condensation)
Buy the Buy Multicomp Pro Illuminated Vandal Resistant Switch Part Number MC010955 Online
Purchase the durable, LED-illuminated vandal resistant switch online to ensure reliable control in harsh industrial environments. Featuring a robust aluminium body, IP65 protection, and rated for 600V and 210A, this switch offers long-lasting performance. Its LED indicators in green, red, or blue provide clear visual status updates. Suitable for 22mm or 30mm mounting holes, it withstands vibration and shock, making it ideal for demanding industrial installations. Buy now for quality and durability.
Buy Multicomp Pro MC010955 now and experience unmatched reliability and performance with durable, IP65-rated vandal resistant switch for industrial applications.
