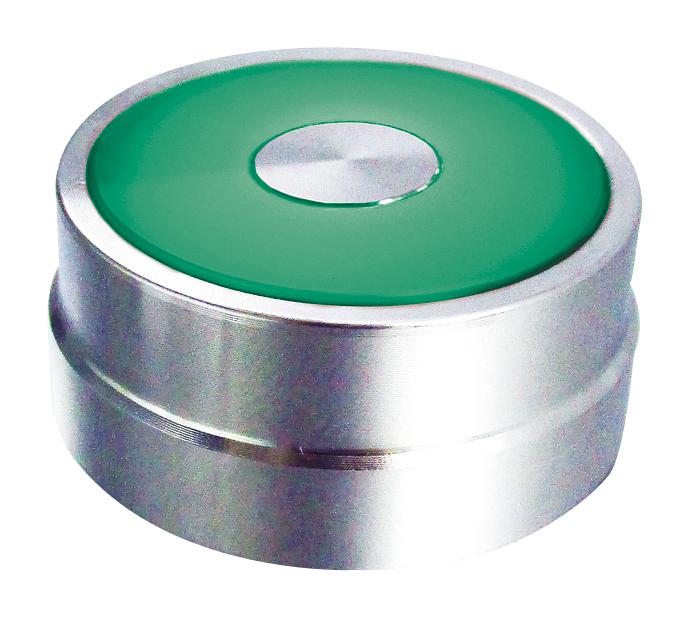

MULTICOMP PRO MC010960 Vandal Switch
This is a flush illuminated vandal-resistant switch suitable for industrial environments requiring durability and reliable operation. It features a metal bezel-ring design with LED indicators available in green, red, and blue. The switch is rated for 600V and 210A, with high dielectric strength and insulation resistance. Designed for mounting hole diameters of 22mm or 30mm, it offers excellent vibration and shock resistance, IP65 protection, and both momentary and maintained operating modes. Designed with silver contacts and suitable for control panels, automation, and security systems, it ensures long service life and robust performance.
MULTICOMP PRO MC010960 Vandal Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green, Red, Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: 1°C to 55°C
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1,000 m/sec² damage limit, 100 m/sec² operating limit
- Mechanical Life: Momentary: 1,000,000 cycles, Maintained: 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Buy Multicomp Pro Vandal Switch Part Number MC010960 Online
Purchase the durable and reliable vandal-resistant illuminated switch online from authorized distributors. Featuring metal bezel, IP65 protection, and LED indicators in various colors, it is ideal for industrial, automation, and security applications. Rated for 600V and 210A, with high dielectric strength and insulation resistance, it offers long-lasting performance. Available in different configurations, including momentary and maintained types, this switch ensures safety, robustness, and easy integration into control systems. Secure your project’s quality by ordering today.
Order your Multicomp Pro SeriesMC010960 vandal-resistant illuminated switch today and enhance your industrial control panels with durable, high-quality components.
