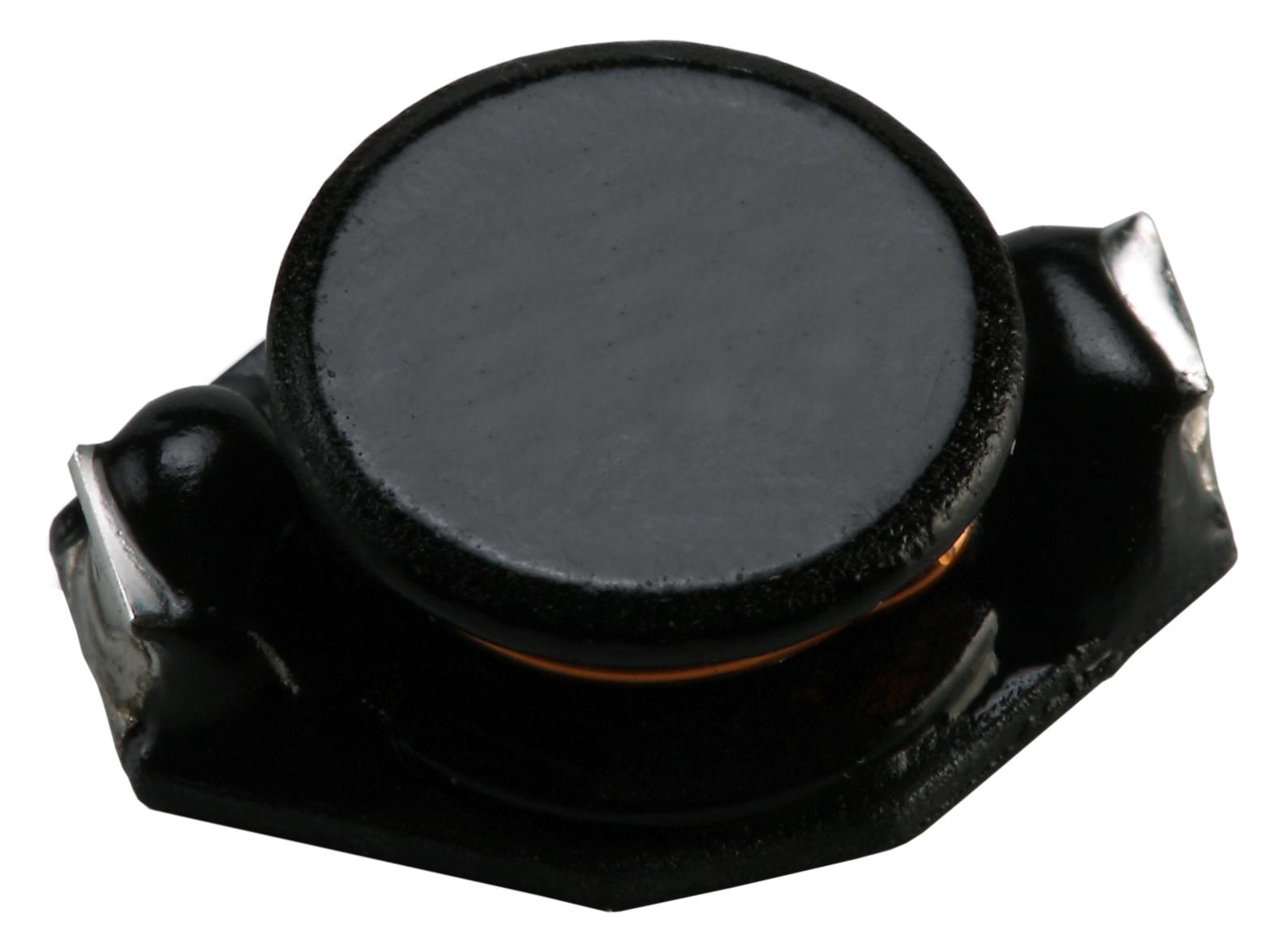

MULTICOMP PRO MP002807 Power Inductor
This Unshielded SMD Power Inductor series offers high power and saturation flux capabilities, suitable for DC-DC converters, portable devices, and electronic appliances. Designed with ceramic or LCP plastic bases, these inductors support operating temperatures from -40°C to 125°C and feature specific dimensions for various models. Ideal for step-up or step-down converters in notebooks, PDAs, and flash memory programmers, they ensure reliable performance in compact electronic applications with low resistance and high current ratings.
MULTICOMP PRO MP002807 Power Inductor Specifications:
- Case code: 1608
- Inductance: 22 μH
- Tolerance: ±20%
- DCR: 0.37 Ω
- Maximum current: 0.70 A
- Operating temperature: -40°C to 125°C
- Dimensions: Length 6.60 mm, Width 4.45 mm, Height 2.92 mm
- Material: Ceramic base
- RoHS compliant
- Suitable for portable and electronic appliance applications
- Saturation rated current: 0.70 A
- Inductance stability: ±20% tolerance at 100kHz, 0.1V
- Environmental tests: temperature, humidity, thermal shock
- Reflow peak temperature: 265°C
- Tape and reel packaging for automated assembly
- Tested for solderability, resistance to soldering heat, vibration, shock
- Designed for high power, high saturation flux, suitable in power circuits
- Application areas: mobile phones, computers, electronic devices
Buy the Multicomp Series SMD Power Inductor: MP002807
Purchase the Multicomp Power Inductor MP002807 online for high power, low resistance, and stable inductance in your electronic projects. Its RoHS compliance ensures environmentally friendly manufacturing, making it ideal for portable devices, DC-DC converters, and other electronic equipment. Designed with ceramic base material, this surface-mount inductor offers excellent thermal stability, high saturation current, and reliable performance at temperatures from -40°C to 125°C. Easy to integrate using automated reflow soldering, it enhances circuit efficiency and durability.
Get Multicomp MP002807 today—built for high power and reliable performance in compact electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002807?
You can click on the BUY or RFQ button to purchase MP002807 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002807?
You can download the MP002807 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002807?
MULTICOMP PRO
