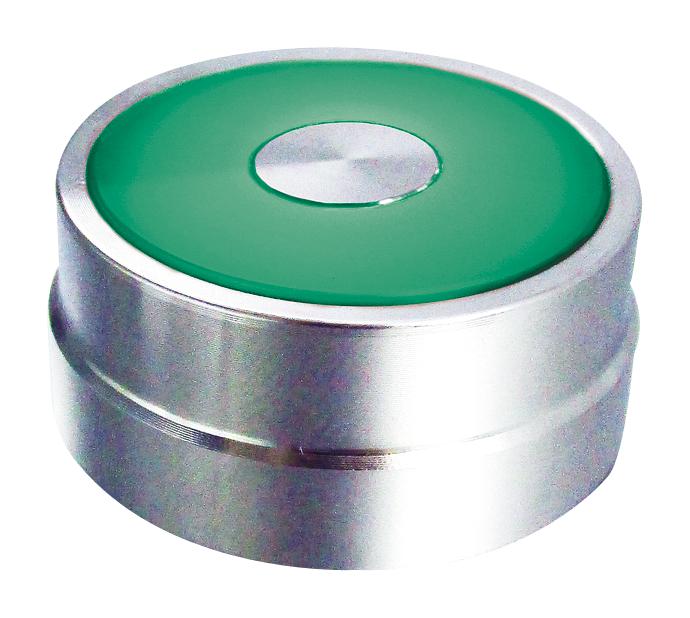

MULTICOMP PRO MC010963 Vandal Resistant Switch
This illuminated vandal-resistant switch offers robust durability with a sleek metal bezel and silhouette-ring design. Suitable for industrial and control panel applications, it features a rated voltage of 600V and a rated current of 210A. The switch provides LED indicators in green, red, and blue at 12V AC/DC. Its dielectric strength exceeds 2,000V between live and ground, with a contact resistance of 50mΩ. Operating temperature ranges from -30°C to +80°C, ensuring reliability in harsh environments. The IP65 degree of protection guarantees resistance to dust and water, making it ideal for vandal and vandal-resistant installations.
MULTICOMP PRO MC010963 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green, Red, Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min
- Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: 1°C to +55°C
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1,000 m/s² damage limit, 100 m/s² operating limit
- Mechanical Life: Momentary 1,000,000 cycles; Maintained 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Buy Multicomp Pro Illuminated Vandal Resistant Switch Part Number MC010963 Online
Purchase the Multicomp Pro vandal-resistant switch online today and enjoy reliable performance with LED indicators in green, red, and blue. Designed for durability and harsh environments, this switch features a metal bezel and silhouette-ring design, rated at 600V and 210A. It offers excellent dielectric strength exceeding 2,000V, IP65 protection, and a wide operating temperature range from -30°C to +80°C. Ideal for industrial control panels requiring vandal resistance, long life cycles, and high resistance to dust and water ingress.
Get Multicomp Pro MC010963 today—built for vandal resistance, enduring durability, and precise control in tough industrial environments.
