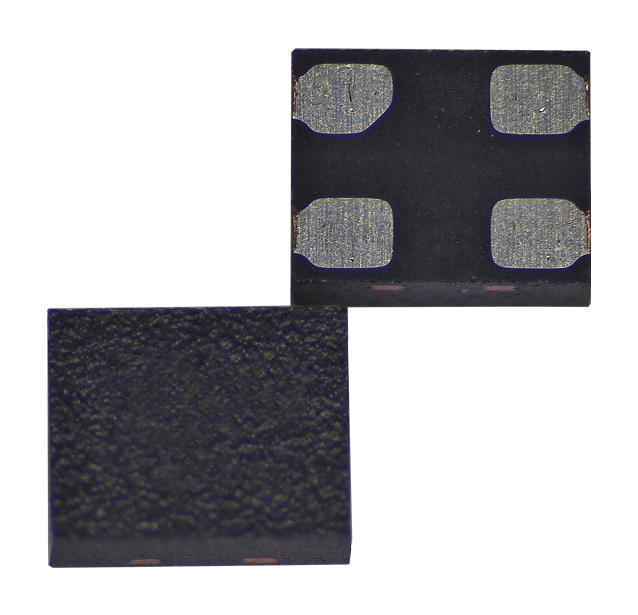

MULTICOMP PRO MP007057 MEMS Oscillator
The SMD MEMS Oscillator is a compact, low-power component measuring 2mm x 1.6mm x 0.75mm, suitable for a wide frequency range from 4MHz to 80MHz. It offers excellent frequency stability as low as +20ppm, low current consumption, and fast startup time of 5ms, making it ideal for sensitive electronic applications. Features include RoHS compliance, LVCMOS/HCMOS output, and operation over temperatures from -40°C to +85°C. Its small size and automatic reflow soldering suitability ensure reliable performance in mobile devices, communication systems, and digital electronics.
MULTICOMP PRO MP007057 MEMS Oscillator Specifications:
- Size: 2mm x 1.6mm x 0.75mm
- Frequency Range: 4MHz to 80MHz
- Output Type: LVCMOS/HCMOS
- Supply Voltage: 1.8V to 3.3V
- Frequency Stability: +20ppm to +50ppm
- Current Consumption: Max 4.5mA
- Standby Current: Max 4.3mA
- Operating Temperature: -40°C to +85°C
- Duty Cycle: 45% to 55%
- Rise/Fall Time: Max 2.5ns
- Startup Time: Max 5ms
- Storage Temperature: -65°C to +150°C
- Dimensions: 2.0mm x 1.6mm x 0.75mm
Buy the Buy Multicomp SMD MEMS Oscillator Part Number MP007057 Online
Purchase the Multicomp Series MP007057 MEMS Oscillator online now for versatile frequency options from 4MHz to 80MHz. This surface-mount device features low power consumption, fast startup time, and high frequency stability, making it suitable for digital and communication electronics. With RoHS compliance and compatibility with automatic reflow soldering, it ensures a quick and reliable assembly process. Ideal for mobile devices, IoT applications, and high-speed data systems, ensuring your project achieves optimal performance and durability with ease.
Order your Multicomp Series MP007057 low-power MEMS Oscillator today and enhance your electronic projects with reliable, high-stability performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP007057?
You can click on the BUY or RFQ button to purchase MP007057 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP007057?
You can download the MP007057 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP007057?
MULTICOMP PRO
