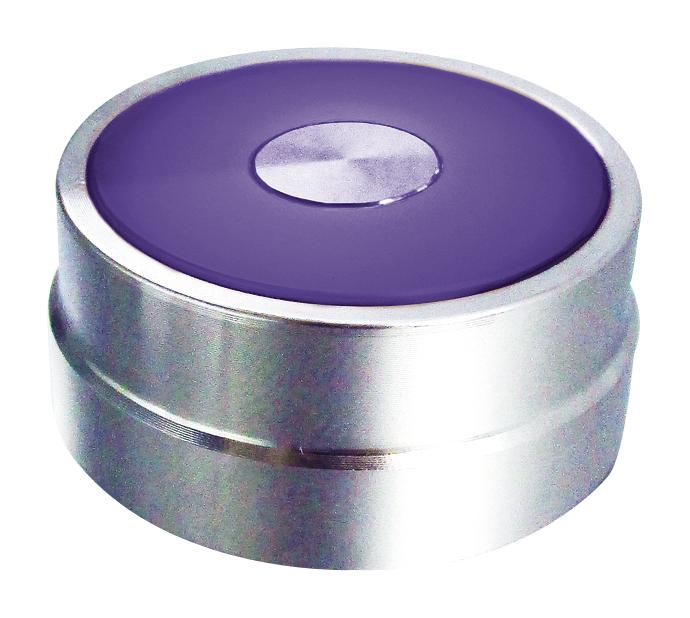

MULTICOMP PRO MC010965 Vandal Resistant Switch
The flush illuminated vandal resistant switch features a metal bezel-ring design with LED indicators in green, red, or blue. It is rated for 600V and 210A, with LED voltage of 12V AC/DC. The switch is constructed from durable aluminium, with a dielectric strength of 2000V AC between live parts and ground, and 1000V AC between terminals of the same poles. It offers a degree of protection IP65, enabling reliable operation in demanding environments with vibration resistance, shock resistance, and long mechanical and electrical life. Suitable for industrial controls and safety applications, it mounts easily via 22mm or 30mm holes.
MULTICOMP PRO MC010965 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: 1°C to +55°C
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1000 m/s² damage limits, 100 m/s² operating limits
- Mechanical Life: Momentary: 1,000,000 cycles; Maintained: 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the MultiComp Series Vandal Resistant Switch: MC010965
Order the high-quality vandal resistant switch online today. Featuring a durable aluminium construction, IP65 protection, and long-lasting LED indicators, it is perfect for industrial control panels, safety mechanisms, and rugged environments. The switch supports 600V and 210A ratings, with multiple mounting options for 22mm or 30mm holes. Its robust design ensures consistent performance under vibration and shock, making it ideal for automation and control applications requiring dependable operation and safety compliance. Purchase now for fast delivery and reliable operation.
Buy MultiComp MC010965 vandal resistant switch now and experience unmatched durability and reliable control in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010965?
You can click on the BUY or RFQ button to purchase MC010965 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010965?
You can download the MC010965 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010965?
MULTICOMP PRO
