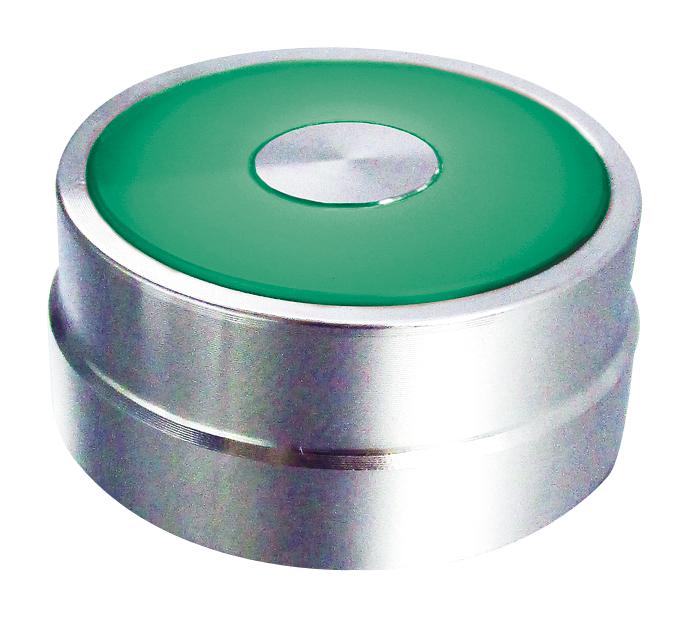

MULTICOMP PRO MC010966 Vandal Resistant Switch
The flush illuminated vandal resistant switch features a robust metal bezel and silhouette ring, designed for installation in panels with 22mm or 30mm holes. It offers high dielectric strength, withstanding up to 2,000V AC/min between live parts and ground, and 1,000V AC/min between terminal poles. The switch includes LED indicators with green, red, or blue colors operating at 12V AC/DC, and has an IP65 degree of protection. Its mechanical life exceeds 1 million cycles, suitable for industrial automation, control systems, and outdoor applications requiring durability and vandal resistance.
MULTICOMP PRO MC010966 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green, Red, Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live parts and ground: 2,000V AC / min
- Between terminals of same poles: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: 1-25°C to +55°C
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1000 m/S² damage limit, 100 m/S² operating limit
- Mechanical Life: 1,000,000 momentary; 100,000 maintained
- Electrical Life: 100,000
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Multicomp Series Illuminated Vandal Switch: MC010966
Purchase the durable vandal-resistant switch online today. It features high dielectric strength, LED illumination in multiple colors, IP65 protection, and a robust metal bezel design, making it ideal for outdoor and industrial applications. With over 1 million mechanical cycles and 100,000 electrical lifespan, this switch ensures reliability and longevity. Its suitable for panels with 22mm or 30mm holes, providing excellent vandal resistance, high electrical performance, and ease of installation. Order now for dependable control solutions.
Get Multicomp Series Illuminated Vandal Switch MC010966 today—built for precision and long-lasting durability in industrial environments.
