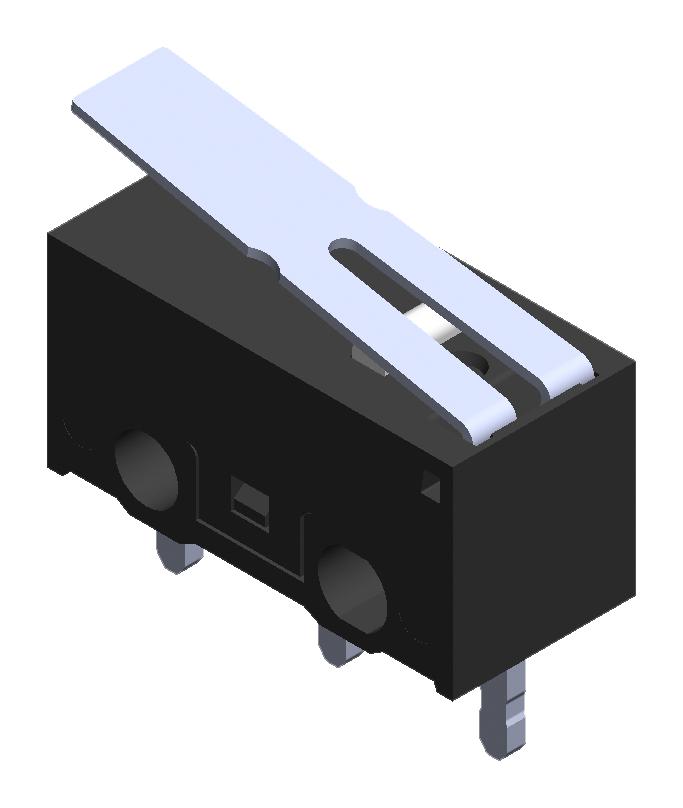

MULTICOMP PRO MP005550 through hole microswitch
These are high-reliability through-hole snap action microswitches designed for industrial and electronic applications. Capable of handling voltage ratings up to 125V AC and current ratings of 3A, they feature multiple actuator options including hinge, bent, pin, and simulated roller levers. With a long operating cycle life exceeding 1,000,000 cycles and operating temperatures from -25°C to +75°C, they are suitable for use in household appliances, security systems, communication equipment, and projectors. They ensure stable switching with low contact resistance and robust insulation resistance, making them ideal for diverse electrical switching needs.
MULTICOMP PRO MP005550 through hole microswitch Specifications:
- Contact Rating: 3A at 125V AC, 1.5A at 250V AC
- Electrical Durability: 8,000 cycles min.
- Mechanical Durability: 1,000,000 cycles min.
- Contact Resistance: 100mΩ max.
- Insulation Resistance: 100MΩ min.
- Operating Temperature: -25°C to +75°C
- Overtravel: 0.55mm min.
- Operating Force: 26gF to 40gF depending on actuator
- Release Force: 2gF min.
- Overtravel: 0.20-0.55mm depending on model
- Movement Differential: 0.20-0.50mm
- Operating Position: 6.9 to 10.2mm
- Free Position: 1.5 to 14mm
- Actuators: Hinge, Bent, Pin, Simulated Roller
- RoHS Compliant
Buy the Farnell MP005550 – Reliable Microswitches for Industrial Applications
Order Farnell MP005550 microswitches online today to ensure your projects and devices operate reliably. These high-quality, RoHS compliant switches handle up to 3A and 125V AC, with long life ratings exceeding 1,000,000 cycles. Designed for diverse applications like household appliances, security systems, communication equipment, and more, they feature various actuator options to suit your mechanical needs. Quick and easy to purchase online, these switches guarantee stable operation, low contact resistance, and robust insulation, making them your ideal choice for dependable electrical switching solutions.
Buy Farnell MP005550 microswitch now and experience unmatched reliability and performance suitable for diverse industrial and electronic needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005550?
You can click on the BUY or RFQ button to purchase MP005550 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005550?
You can download the MP005550 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005550?
MULTICOMP PRO
