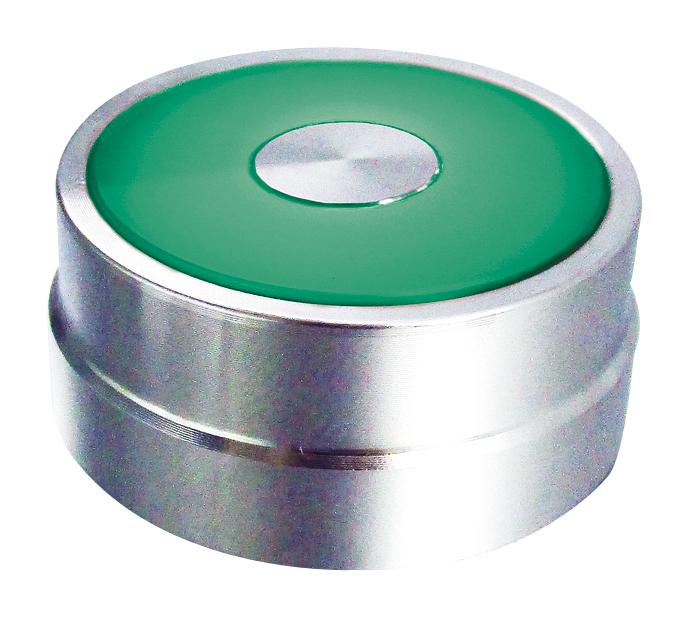

MULTICOMP PRO MC010969 Vandal-resistant switch
The flush illuminated vandal-resistant switch features a robust metal bezel-ring construction with an IP65 degree of protection, making it ideal for industrial environments. It offers rated voltage of 600V and a rated current of 210A, with LED indicators available in green, red, or blue at 12V AC/DC. Designed for mounting hole diameters of 22mm or 30mm, it provides excellent dielectric strength, insulation resistance, vibration and shock resistance, as well as a long mechanical and electrical lifespan. Its rugged build and advanced features ensure reliable operation in harsh conditions.
MULTICOMP PRO MC010969 Vandal-resistant switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green, Red, Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min
- Between terminal of same poles: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: 1-25°C to +55°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1,000 m/S² damage limit, 100 m/S² operating limit
- Mechanical Life: 1,000,000 momentary, 100,000 maintained
- Electrical Life: 100,000
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Multicomp Pro MC010969 – Reliable vandal-resistant industrial switch for harsh environments
Order the vandal-resistant switch online today to ensure your industrial applications benefit from high durability, IP65 protection, and LED indicators in multiple colors. This switch supports up to 600V and 210A, making it ideal for demanding environments. Its robust aluminium construction, long electrical and mechanical lifespan, plus its resistance to vibration and shock, guarantee reliable performance. Perfect for industrial control panels, automation systems, and harsh environment equipment, this switch delivers safety, durability, and easy installation for comprehensive operational excellence.
Buy multicomp:ro MC010969 now and experience unmatched reliability and performance suitable for industrial environments with rugged build quality.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010969?
You can click on the BUY or RFQ button to purchase MC010969 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010969?
You can download the MC010969 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010969?
MULTICOMP PRO
