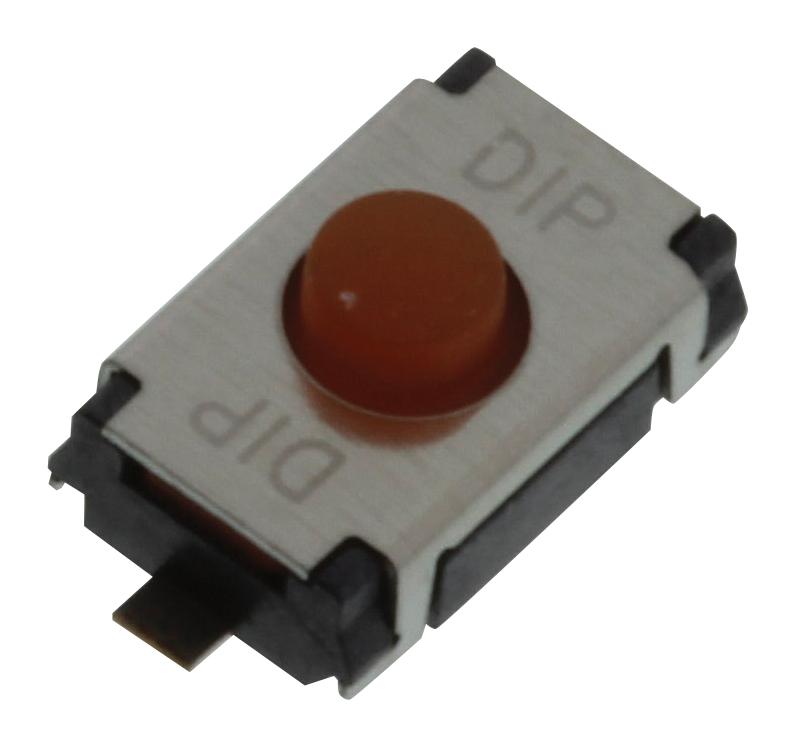

MULTICOMP PRO MCTAEF25SV Tactile Switch
The MCTAEF-25S-V is a compact, high-quality SPST tactile switch measuring 3.8 x 6 mm with a 2.5 mm height, featuring a flat lead design. It has silver-plated contacts, a dielectric strength of 300VAC for 1 minute, and a contact resistance of 100mΩ max. Operating temperature ranges from -40°C to +85°C, with an operating force of 450gf and a travel of 0.45mm. It’s ideal for industrial applications, offering reliability with 200,000 life cycles and RoHS compliance, making it suitable for modern electronic devices requiring durability and precision.
MULTICOMP PRO MCTAEF25SV Tactile Switch Specifications:
- Contact Arrangement: SPST
- Contact Rating: 50mA, 12VDC
- Contact Resistance: 100mΩ Max.
- Insulation Resistance: > 100MQ Min. 100V DC
- Dielectric Strength: 300V AC/1 minute
- Operating Force: 450gf (Salmon)
- Travel: 0.45mm
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Dimensions: 3.8 x 6 mm, height 2.5 mm
- Silver-plated contacts for reliable switching
- RoHS compliant design for environmental safety
- Long life cycle: 200,000 cycles
- Suitable for industrial and electronic assembly
- Flat solder terminals for easy mounting
Buy the Buy Multicomp Pro Tactile Switch Part Number MCTAEF25SV Online
Purchase the Multicomp Pro MCTAEF25SV tactile switch online today—designed for industrial reliability and precision. With dimensions of 3.8 x 6 mm and a height of 2.5 mm, this SPST switch features silver-plated contacts ensuring excellent conductivity. Operating across -40°C to +85°C, it supports 200,000 cycles, making it suitable for demanding applications. Its RoHS compliance and flat lead design facilitate easy mounting for electronic devices. Secure your inventory now by ordering this high-performance switch online, ensuring long-lasting durability and excellent performance for your projects.
Get Multicomp Pro MCTAEF25SV today—built for durability with a thin profile and reliable contact performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTAEF25SV?
You can click on the BUY or RFQ button to purchase MCTAEF25SV from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTAEF25SV?
You can download the MCTAEF25SV datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTAEF25SV?
MULTICOMP PRO
