MULTICOMP PRO MC010975 Vandal Resistant Switch

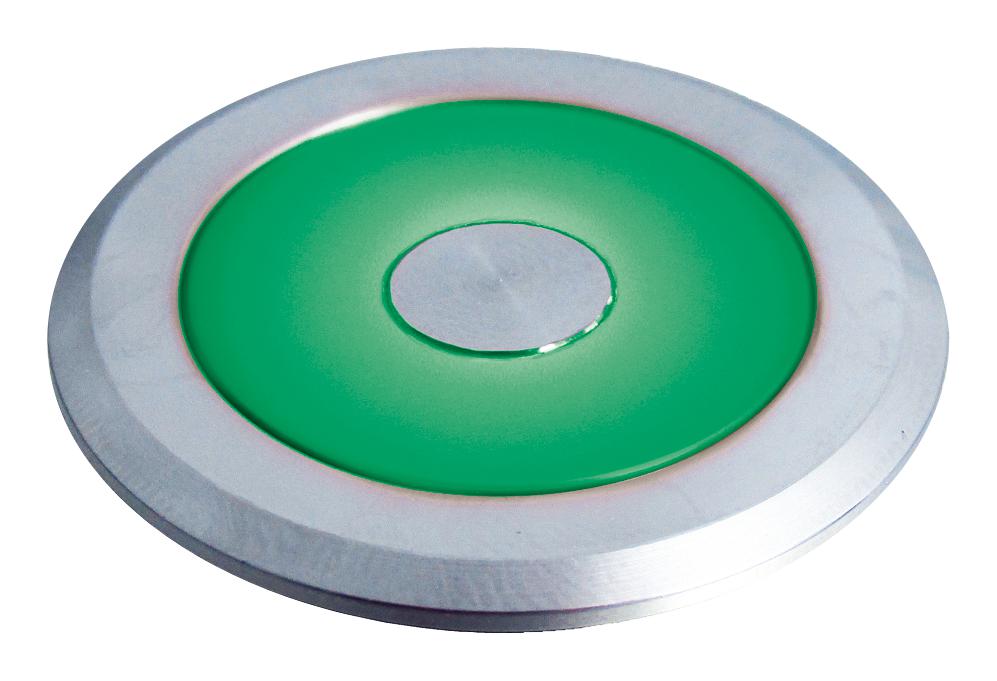

The flush illuminated vandal resistant switch combines durability with user-friendly features, designed for industrial environments. It features a metal bezel or silhouette ring, rated for 600V and 210A, with LED indicators in green, red, or blue. This switch supports various configurations such as maintained or momentary operation, with contact options of 1NO, 1NC, 2NO, 2NC, 4NC, or combinations like 1NO + 1NC. Crafted from durable aluminium, it withstands harsh conditions with an IP65 rating, operates between -30°C to +80°C storage and 1-55°C operating temperature, and resists vibration and shocks, making it ideal for rugged applications.
MULTICOMP PRO MC010975 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min
- Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: 1°C to 55°C
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1,000 m/s² Damage limits, 100 m/s² Operating limits
- Mechanical Life: Momentary: 1,000,000 cycles, Maintained: 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Multicomp Pro MC010975 – Reliable Vandal Resistant Switch for Industrial Applications
Order the durable vandal resistant switch from Multicomp Pro today to ensure reliable performance in industrial environments. Featuring a rugged aluminium construction, IP65 protection, and multiple contact configurations, this switch is designed for harsh conditions. Its LED indicators in green, red, or blue provide clear visual status. Rated for 600V and 210A, it withstands shocks, vibrations, and extreme temperatures, making it ideal for control panels, machinery, and automation systems. Buy online for fast delivery and guaranteed quality.
Get Multicomp Pro MC010975 today—built for precision and long-lasting durability in rugged environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010975?
You can click on the BUY or RFQ button to purchase MC010975 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010975?
You can download the MC010975 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010975?
MULTICOMP PRO
