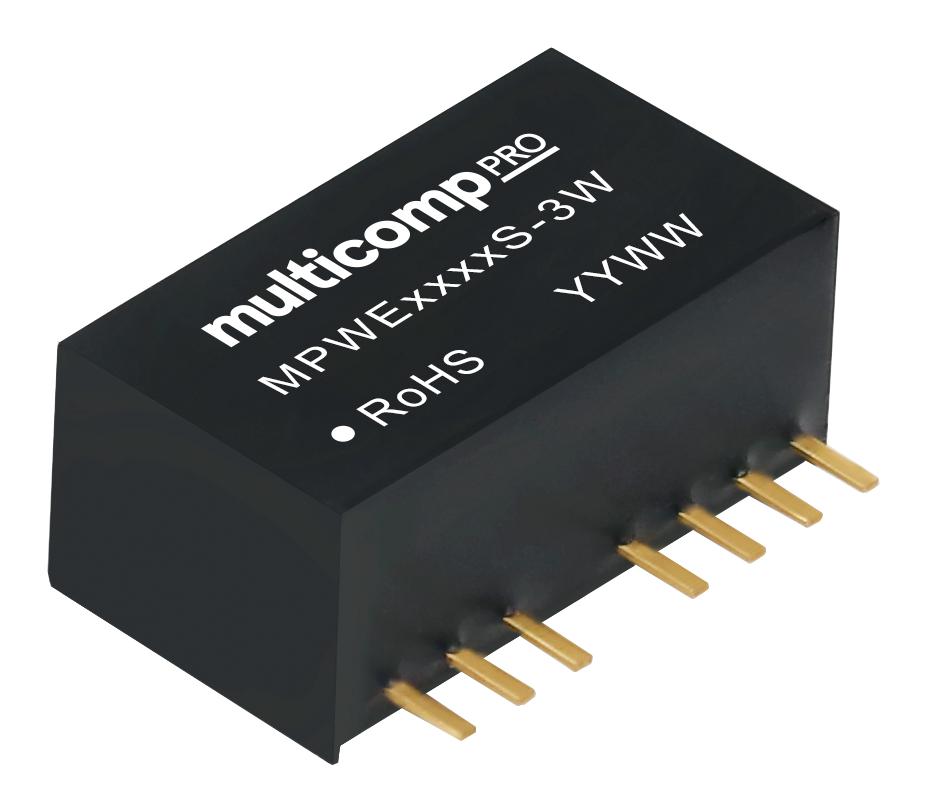

MULTICOMP-PRO MPWE1215S3W isolated DC-DC converter
This 3W isolated DC-DC converter provides reliable power conversion with an ultra-wide input range of 4.5V to 36V, offering a regulated 5V output at 600mA. Suitable for industrial, medical, and communication applications, it features high efficiency up to 79%, low no-load power consumption of 0.12W, and an isolation test voltage of 3000VDC. Its compact SIP package measures 22mm x 9.5mm x 12mm, with comprehensive protection features like input under-voltage, overload, and short circuit protections. Designed for ambient temperatures from -40°C to +105°C, it ensures stable performance in demanding environments.
MULTICOMP-PRO MPWE1215S3W isolated DC-DC converter Specifications:
- Input Voltage Range: 4.5V to 36V
- Output Voltage: 5V
- Output Current: 600mA
- Maximum Efficiency: 79%
- No-load Power Consumption: 0.12W
- Isolation Test Voltage: 3000VDC
- Operating Temperature Range: -40°C to +105°C
- Dimensions: 22mm x 9.5mm x 12mm
- Case Material: Flame-retardant plastic UL94-V0
- Vibration Resistance: 10-150Hz, 5G
- MTBF: 1000 hours
- Soldering Resistance: 10 seconds at 300°C
- Insulation Resistance: 1000 MΩ at 500VDC
- Storage Temperature: -55°C to +125°C
- Certifications: RoHS, EN62368, UL
- Operating Humidity: 5% to 95%
Buy the Buy Multicomp Isolated DC-DC Converter Part Number MPWE1215S3W Online
Securely purchase the Multicomp series MPWE1215S3W isolated 3W DC-DC converter online today. With an ultra-wide input range, high efficiency up to 79%, and comprehensive protections, this compact module is ideal for industrial, medical, and communication systems. Its robust 3000VDC isolation ensures safety and reliability even in demanding environments. Designed for temperatures from -40°C to +105°C, it offers excellent thermal stability and long-term durability. Trust our online ordering for quick delivery and quality assurance.
Order your Multicomp Series MPWE1215S3W 3W isolated DC-DC converter today and ensure stable, efficient power for your industrial or medical projects.
