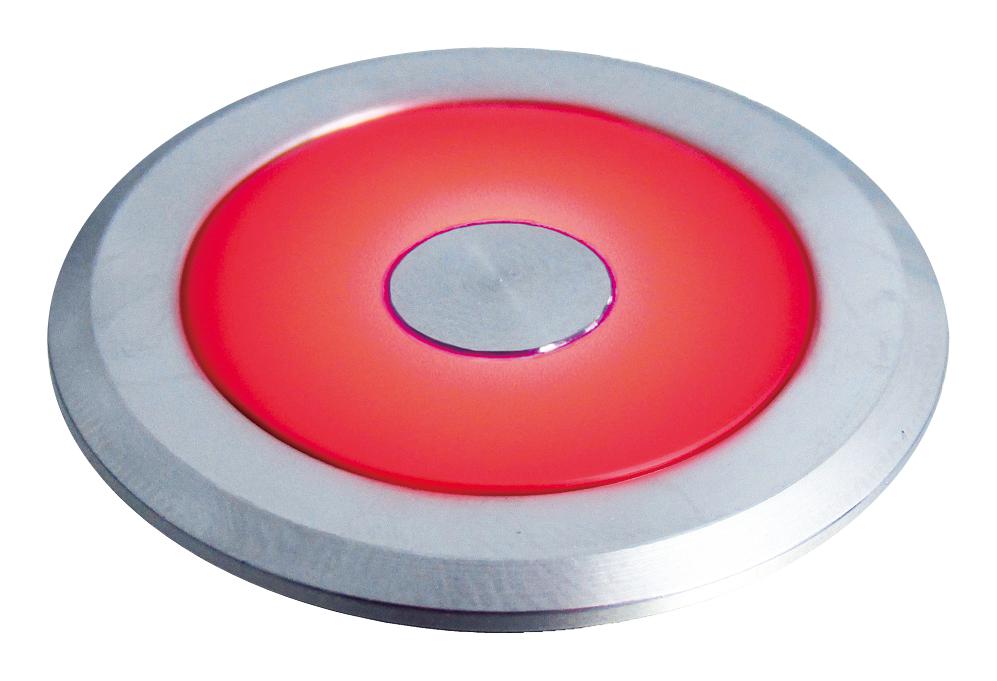

MULTICOMP PRO MC010976 Illuminated Vandal Switch
The Flush Illuminated Vandal Resistant Switch is designed for industrial environments requiring durable and reliable control components. Featuring a metal bezel and silhouette ring, it offers IP65 protection, making it resistant to dust and water. Suitable for mounting hole diameters of 22mm or 30mm, it has contact blocks with silver contacts, and options for LED illumination in green, red, or blue. With a rated voltage of 600V and rated current of 210A, it withstands various environmental conditions, vibration, shock, and temperature ranges. Its rugged construction ensures long mechanical and electrical life, ideal for demanding automation and control applications.
MULTICOMP PRO MC010976 Illuminated Vandal Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green, Red, Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min
- Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: 1-25°C to +55°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1,000 m/sec² damage limit, 100 m/sec² operating limit
- Mechanical Life: Momentary: 1,000,000, Maintained: 100,000
- Electrical Life: 100,000
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the BrandName MC010976 – Reliable Illuminated Control Switch for Industrial Applications
Order the illuminated vandal resistant switch online today and enhance your industrial control panels with a rugged, IP65-rated component. Featuring LED illumination options in green, red, and blue, this switch offers reliable operation with a rated voltage of 600V and current of 210A. Its durable aluminium finish provides excellent protection against dust and water, ideal for harsh environments. Easy to install with 22mm or 30mm mounting hole options, it supports long-term mechanical and electrical durability, ensuring safe and efficient operation in demanding applications. Purchase now for quick delivery!
Buy BrandName MC010976 now and experience unmatched reliability and performance in rugged industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010976?
You can click on the BUY or RFQ button to purchase MC010976 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010976?
You can download the MC010976 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010976?
MULTICOMP PRO
