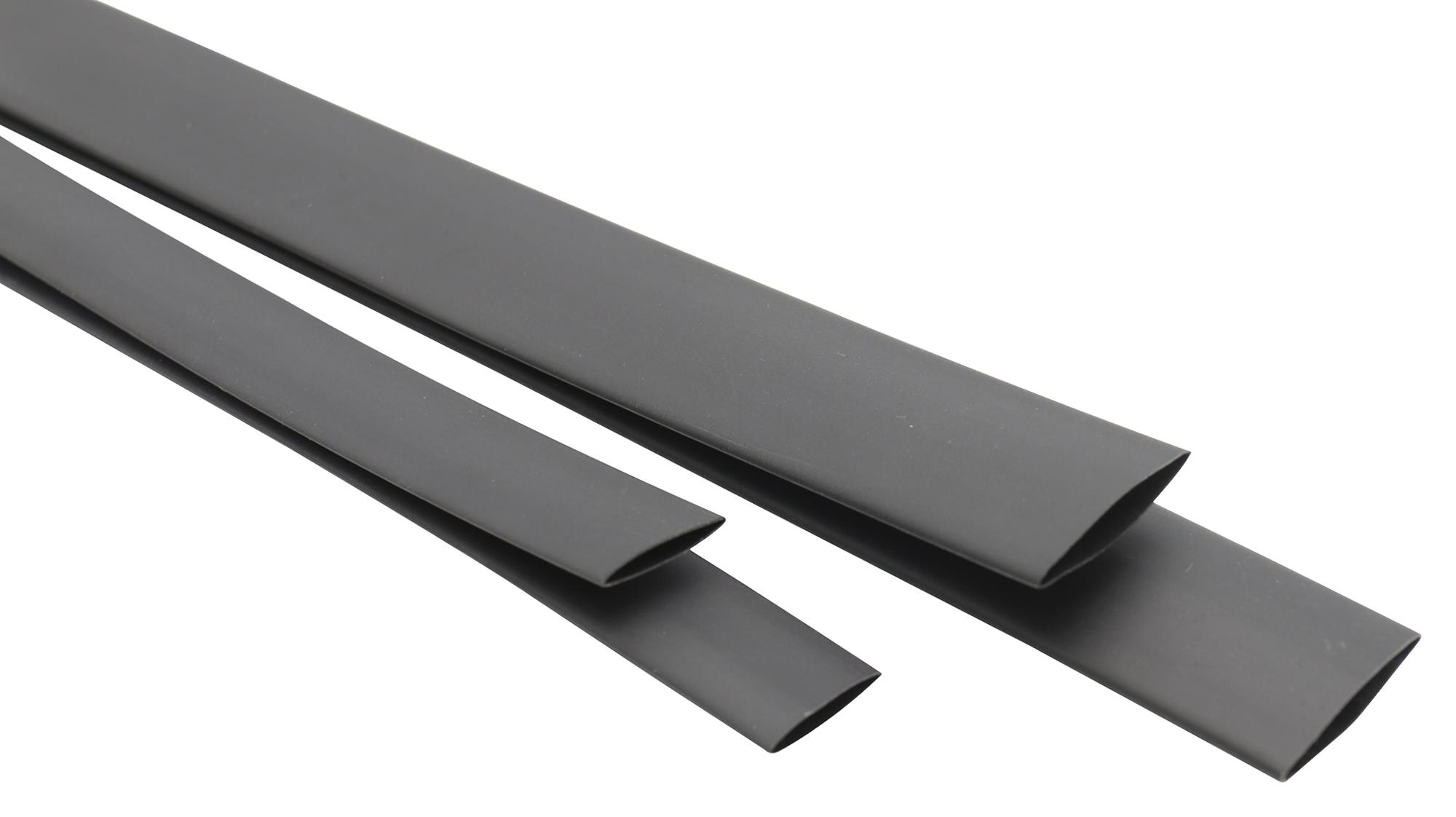

MULTICOMP PRO PP002794 Heatshrink Tubing
The heat shrink tubing features a 2:1 shrink ratio, made from radiation cross-linked polyolefin, halogen free for flexibility, and shrinks at low temperature. It offers excellent mechanical, electrical, and thermal performance, including tensile strength of 210.4 MPa, elongation of 2200%, dielectric strength of 215 kV/mm, and meets RoHS and Sony-SS-00259 standards. Operating temperature ranges from -55°C to +125°C, with a minimum shrink temperature of 70°C and full recovery at 120°C. Resistant to heat aging, flames, and corrosion, suitable for protecting temperature-sensitive components like wires and cables during quick shrinkage processes.
MULTICOMP PRO PP002794 Heatshrink Tubing Specifications:
- Shrink Ratio: 2:1
- Operating Temperature: -55°C to +125°C
- Min. Shrink Temperature: 70°C
- Full Recovery Temperature: 120°C
- Tensile Strength: 210.4 MPa
- Elongation: 2200%
- Dielectric Strength: 215 kV/mm
- Volume Resistivity: 21x10^4 Ω·cm
- Flammability: Meets FMVSS302
- Material: Radiation cross-linked polyolefin, halogen free
- Wall Thickness: 0.2 mm to 0.5 mm depending on size
- Internal Diameter: Range from 1.6mm to 50.8mm
Buy the Pro-Power Series Heatshrink Tubing: PP002794
Enhance your electrical insulation and cable protection with our flexible, halogen free heat shrink tubing. Designed for quick shrinking at low temperatures, it offers excellent mechanical strength, electrical insulation, and corrosion resistance. Suitable for protecting sensitive components in demanding environments, it complies with RoHS standards and meets industry certifications. Available in multiple sizes, this durable tubing ensures reliable performance during installation and operation, providing peace of mind for your electronics, wiring, and manufacturing applications. Buy online today and ensure high-quality protection for your valuable components.
Order your Pro-Power Series PP002794 heat shrink tubing today and give your projects the dependable quality they deserve.
