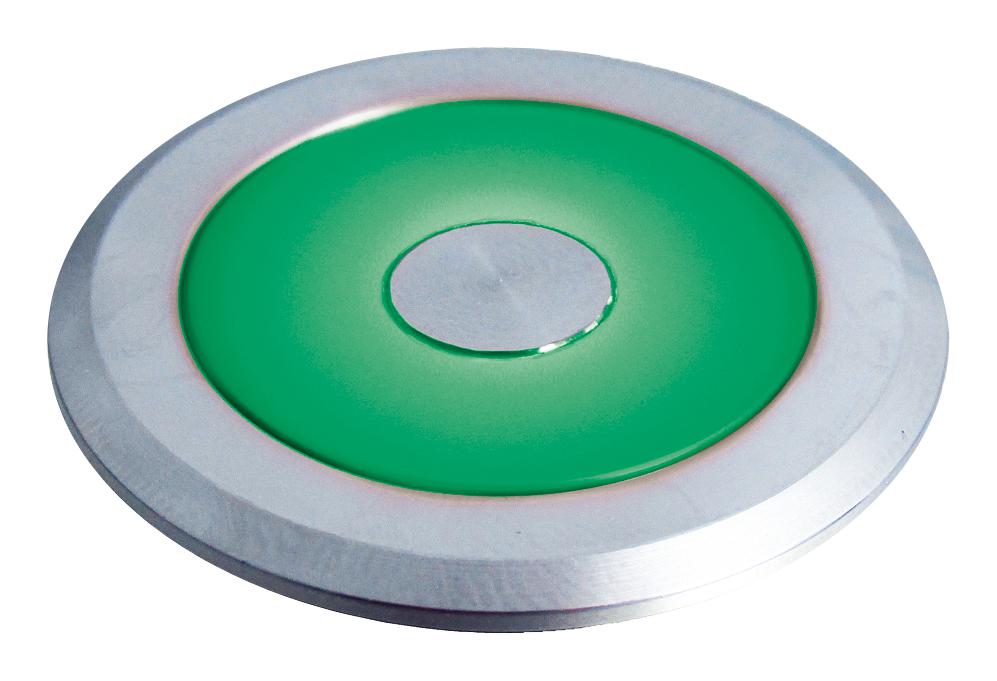

MULTICOMP PRO MC010978 Resistant Industrial Vandal Switch
The Flush Illuminated Vandal Switch is a high-quality, resistant switch designed for industrial applications. It features a metal bezel-ring or silhouette-ring and is suitable for mounting hole diameters of 22mm or 30mm. The switch includes silver-contact contact blocks, LED illumination with available colors in green, red, and blue, and offers an IP65 degree of protection. It withstands dielectric strengths of 2,000V between live parts and ground, and 1,000V between terminals. The switch operates effectively within -30°C to +80°C storage and 1-55°C operational temperature ranges, with shock and vibration resistance for demanding environments. Its long mechanical and electrical life ensure durability in industrial settings.
MULTICOMP PRO MC010978 Resistant Industrial Vandal Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min
- Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: 1°C to 55°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Damage limits: 1,000 m/s², Operating limits: 100 m/s²
- Mechanical Life: Momentary: 1,000,000 cycles, Maintained: 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Multicomp Resistant Switch – Reliable Industrial Switch for Industrial Applications
Purchase the robust and reliable resistant switch online today. Designed for demanding industrial applications, it features durable aluminium construction, high dielectric strength, and LED illumination in multiple colors. Perfectly suited for mounts of 22mm or 30mm, it offers long-term durability with a mechanical life of up to 1 million cycles. Its IP65 rating ensures resistance to dust and water, making it an ideal choice for factories, control panels, and automation systems. Order now to enhance your industrial hardware with this trusted switch.
Get multicomp resistant switch today—built for precision and long-lasting durability in industrial environments.
